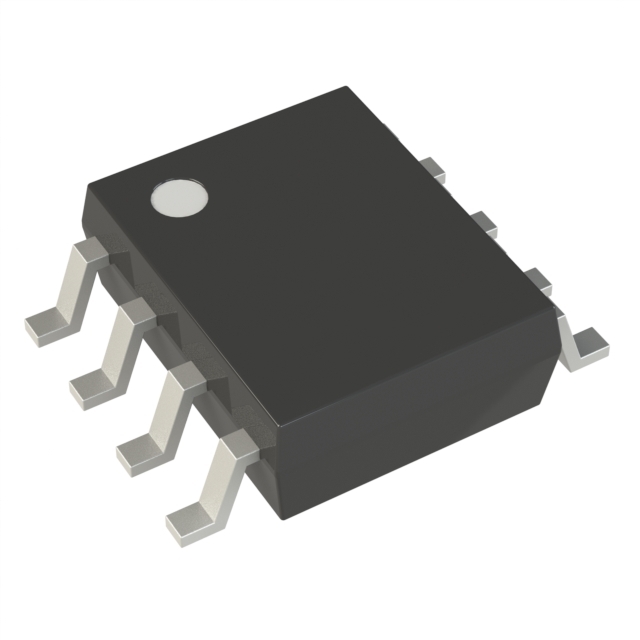

HCPL-0631

Name: HCPL-0631
Brand: Broadcom Limited
SKU: 141834
Availability: InStock
Rating: 4.93 (4 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCPL-0631
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Logic Output
Description	OPTOISO 3.75KV 2CH OPEN COLL 8SO
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Package	Tube
Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	24ns, 10ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	15mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO Tall
Ultra Librarian 3D Model	Ultra Librarian HCPL-0631 CAD Model

Alternative Products

Description

The Broadcom Limited HCPL-0631 is a Schottky clamped, open collector output type optocoupler with a data rate of 10MBd.

Output Type: Schottky Clamped, Open Collector
Data Rate: 10MBd
Forward Voltage: 1.5V
Isolation Voltage: 3750Vrms
Number of Channels: 2
Inputs (Side 1/Side 2): 2/0
Common Mode Transient Immunity: 10kV/μs
Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
Operating Temperature: -40°C to 85°C
Package: Tube/Rail
Supply Voltage: 4.5V to 5.5V
Supply and Demand: Limited
Applications: Sensing & Instrumentation, Computers & Computer Peripherals, Communications & Networking, and Power Management
Quantity per Package: 100
