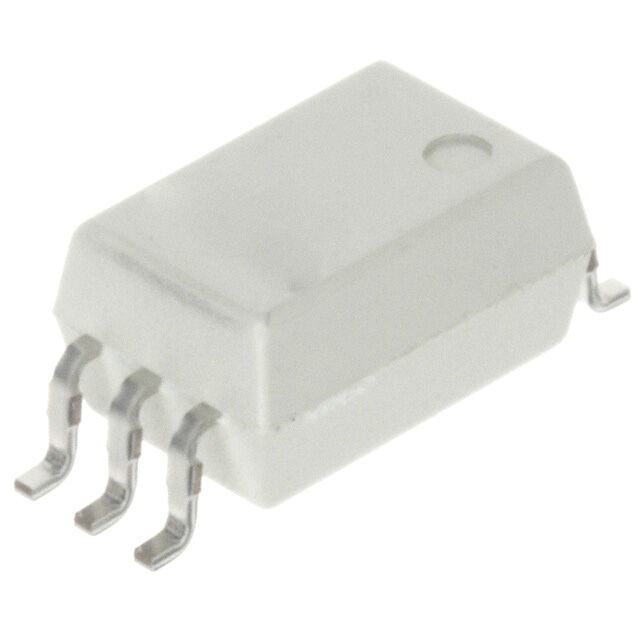

Same model may have multiple batches, images only for reference.
PS9303L2-AX Renesas Electronics America – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PS9303L2-AX

Part No PS9303L2-AX
Manufacturer Renesas Electronics America
Catalog Optoisolators - Logic Output
Description Logic Output Optoisolator 1Mbps Push-Pull, Totem Pole 5000Vrms 1 Channel 15kV/µs CMTI 6-SDIP Gull Wing
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Renesas Electronics Corporation
Series NEPOC
Packaging Strip
Part Status Not For New Designs
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 15kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 25 mA
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 500ns, 550ns
Rise / Fall Time (Typ) 120ns, 90ns
Voltage - Forward (Vf) (Typ) 1.6V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 4.5V ~ 20V
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package 6-SDIP Gull Wing
Base Product Number PS9303
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1479047-PS9303L2-AX
Ultra Librarian 3D Model Ultra Librarian PS9303L2-AX CAD Model
