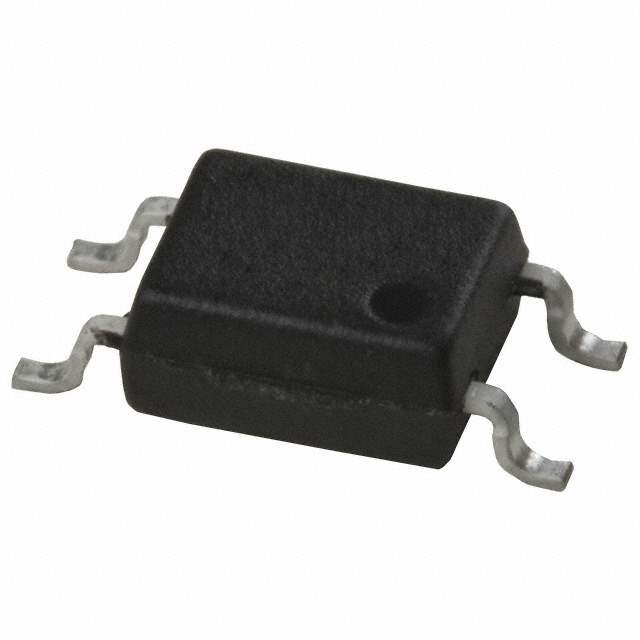

HCPL-181-000E

Part No HCPL-181-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 4SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SO
Win Source Part Number 016852-HCPL-181-000E
Family Name HCPL-181
Introduction Date October 01, 2003
ECCN EAR99
Country of Origin China, China
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing, Power Management
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HCPL-181-000E CAD Model

Description

The HCPL-181-000E from Broadcom Limited is an SMD (SMT) mounted, single channel optocoupler.

  • Mounting Type: SMD (SMT)
  • Channels: Single
  • DC Current Transfer Ratio: 50% (min) to 600% (max) @ 5mA
  • Isolation Voltage: 3750Vrms
  • Maximum Output Voltage: 80V
  • Forward Voltage: 1.2V
  • Applications: Computers and Computer Peripherals, Test and Measurement, Signal Processing, and Power Management
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Continuous Forward Current: 50mA
  • Channel Output Current: 50mA
  • Package: 4-SO
  • Operating Temperature: -55°C to 100°C
