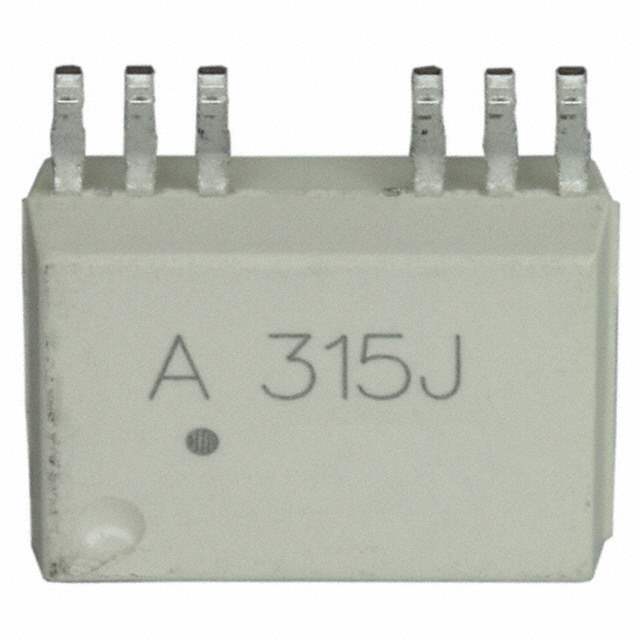

HCPL-315J-000E Real Image
Same model may have multiple batches, images only for reference.

HCPL-315J-000E

Part No HCPL-315J-000E
Manufacturer Broadcom Limited
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV 2CH GATE DRIVER 16SO
Datasheet
HCPL-315J-000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Technology Optical Coupling
Number of Channels 2
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 15kV/μs
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Pulse Width Distortion (Max) 300ns
Rise and Fall Time 100ns, 100ns
Current - Output High, Low 500mA, 500mA
Current - Peak Output 600mA
Forward Voltage 1.6V
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 16-SO
Approvals CSA, IEC/EN/DIN, UR
Win Source Part Number 118042-HCPL-315J-000E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 45
Ultra Librarian 3D Model Ultra Librarian HCPL-315J-000E CAD Model

Description

The Broadcom Limited 118042-HCPL-315J-000E is a two-channel optical coupling technology isolator.

  • Current Output: 500mA
  • Forward Voltage: 1.6V
  • Isolation Voltage: 5000Vrms
  • Common Mode Transient Immunity: 15kV/μs
  • Pulse Width Distortion: 300ns
  • Propagation Delay: 500ns
  • Rise and Fall Time: 100ns
  • Continuous Forward Current: 25mA
  • Category: Isolator
  • Approvals: CSA, IEC/EN/DIN, and UR
  • Mounting: SMD (SMT)
  • Package: 16-SO
  • Operating Temperature: -40°C to 100°C
  • Operating Supply Voltage: 15 V to 30 V
  • Supply and Demand: balanced
  • Package Quantity: 45
