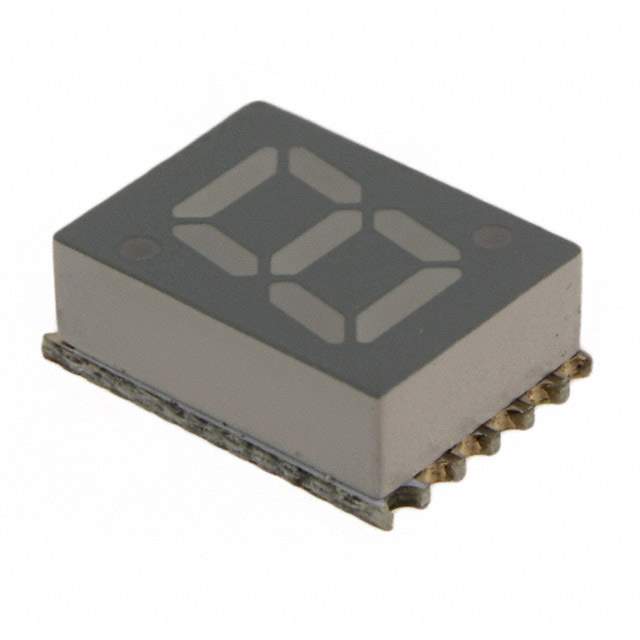

HDSM-281F Real Image
Same model may have multiple batches, images only for reference.

HDSM-281F

Part No HDSM-281F
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.28" SGL YLW 12SMD  /  Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 20mA 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) 12-SMD, No Lead, 11 Pads
Datasheet
HDSM-281F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Broadcom Limited
Package Tape & Reel
Number of Characters 1
Dimension 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm)
Digit/Alpha Size 0.28" (7.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Yellow
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 8mcd
Wavelength - Peak 591nm
Power Dissipation (Max) 65mW
Package / Case 12-SMD, No Lead, 11 Pads
Base Product Number HDSM-281
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-4067-6,HDSM-281F-ND,516-4067-2,516-4067-1
Standard Package 1,000
Win Source Part Number 1146469-HDSM-281F
Ultra Librarian 3D Model Ultra Librarian HDSM-281F CAD Model

Description

The HDSM-281F is a display module with a 7-segment LED character and numeric display type.

  • Display Type: 7-Segment LED Character and Numeric
  • Millicandela Rating: 8mcd
  • Forward Voltage: 2.1V
  • Current Test: 20mA
  • Peak Wavelength: 591nm
  • Package: 12-SMD, no lead, 11 pads
  • Dimensions: 0.425 inches (Height), 0.295 inches (Width), 0.124 inches (Depth)
  • Common Pin: Common Anode
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Broadcom Limited
