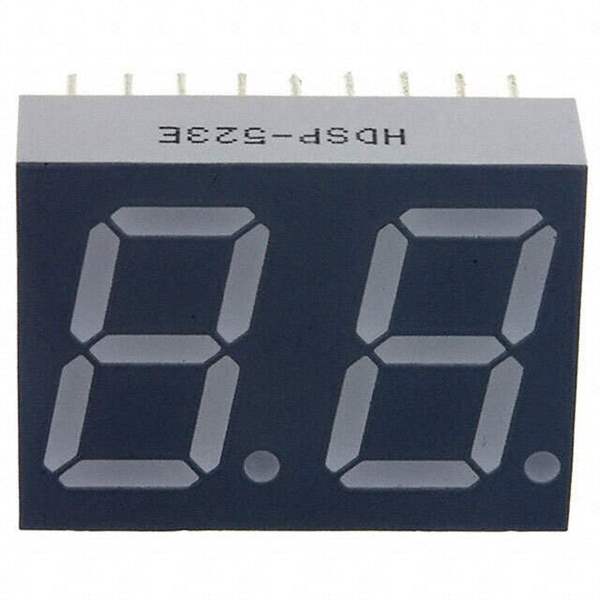

HDSP-523E Real Image
Same model may have multiple batches, images only for reference.

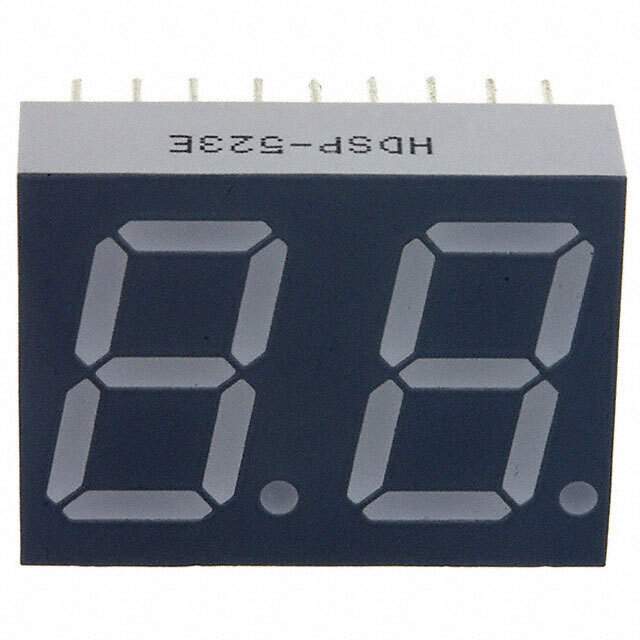

HDSP-523E

Part No HDSP-523E
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description 14.2 mm (0.56 inch) General Purpose Two Digit Seven Segment Displays | LED 7-SEG 14.2MM 2DIG CC HER RHD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube
Number of Characters 2
Parts Dimension 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) 2.05V
Current - Test 20mA
Millicandela Rating 4mcd
Wavelength - Peak 640nm
Power Dissipation (Maximum) 62.5mW
Manufacturer Package 18-DIP
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179737-HDSP-523E
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-523E CAD Model

Description

This component is a 7-segment display type with 2 characters.

  • Display Type: 7-Segment
  • Characters: 2
  • Digit/Alpha Size: 0.56" (14.22mm)
  • Common Pin: Common Cathode
  • Color: Red
  • Millicandela Rating: 4mcd
  • Current Test: 20mA
  • Wavelength-Peak: 640nm
  • Manufacturer Package: 18-DIP
  • Power Dissipation (Maximum): 62.5mW
  • Win Source Part Number: 1179737-HDSP-523E
