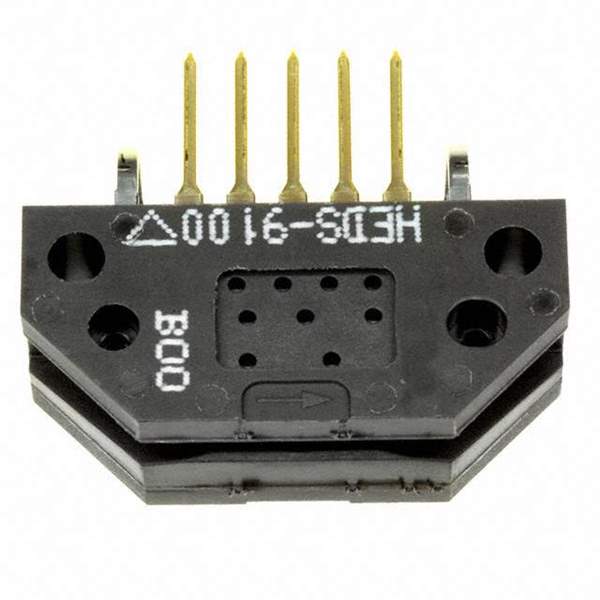

HEDS-9100#B00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9100#B00

Part No HEDS-9100#B00
Manufacturer Broadcom Limited
Catalog Encoders

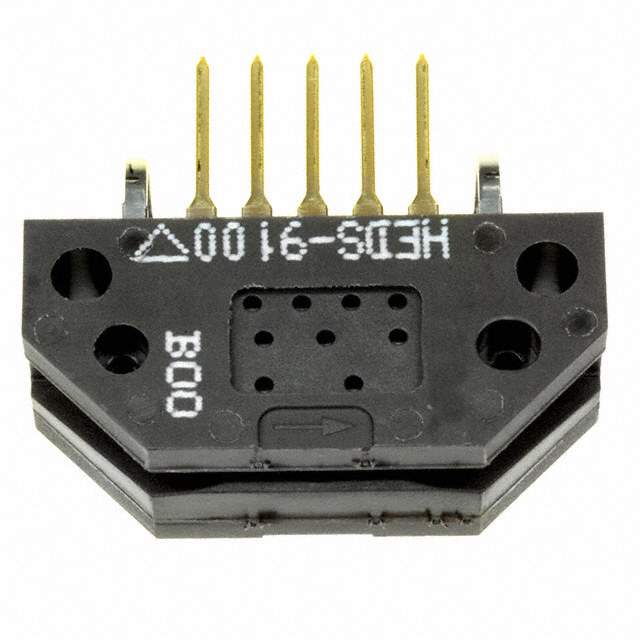

Description ENCODER MOD OPT INCREMENTAL 2CH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 1000
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 1043021-HEDS-9100#B00
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Building Automation, Industrial
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian HEDS-9100#B00 CAD Model

Description

The Broadcom Limited Sensors, Transducers is a high-quality electronic component designed to provide reliable performance in a variety of applications.

  • Type: Optical Encoder
  • Termination Style: Terminal Pins
  • Mounting: Chassis Mount
  • Supply and Demand: Balanced
