Same model may have multiple batches, images only for reference.

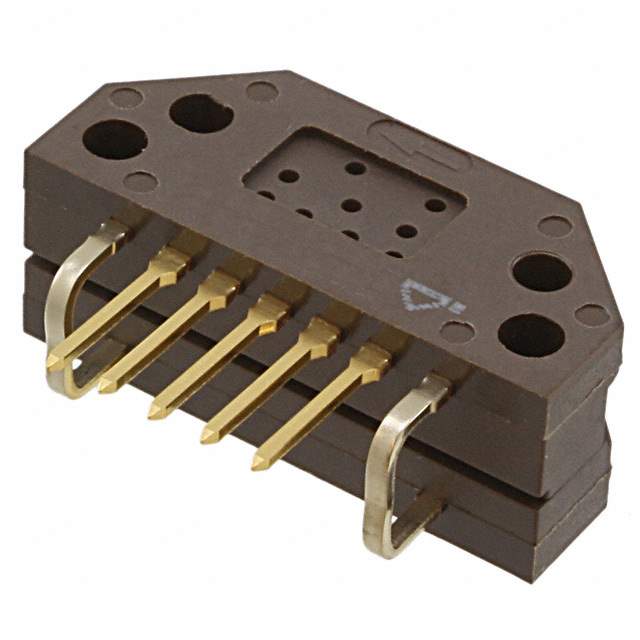

HEDS-9200#360 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9200#360

Part No HEDS-9200#360
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 2CH 360 LPI / Optical Encoder Linear Incremental Straight Digital Through Hole PC Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 360 LPI
Operating Supply Voltage 5V
Actuator Type Codestrip Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775894-HEDS-9200#360
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9200
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9200#360 CAD Model

Description

The Broadcom Limited HEDS-9200#360 is an optical encoder with a quadrature (incremental) output type from Broadcom Limited.

  • Rotational Life: Cycles minimum
  • Resolution: 360 LPI
  • Mounting: Chassis mount
  • Termination: Terminal pins
  • Operating Supply Voltage: 5V
  • Orientation: Vertical
  • Built-in Switch: No
  • Suitable for use in: Sensors and transducers
  • Package Quantity: 100
  • Estimated EOL Date: 2027
