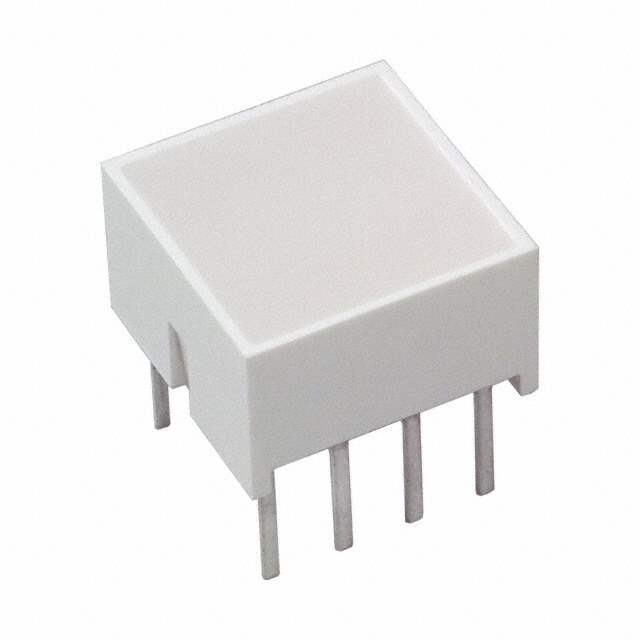

HLMP-2755 Real Image
Same model may have multiple batches, images only for reference.

HLMP-2755

Part No HLMP-2755
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED LT BAR 8.89X8.89MM SGL YLW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Color Yellow
Wavelength - Peak 583nm
Configuration Bar - Single, DIP
Current 25mA
Millicandela Rating 70mcd
Lens Style/Size Square with Flat Top, 8.89mm
Voltage Rating 2.1V
Mounting Through Hole
Win Source Part Number 016986-HLMP-2755
Popularity Medium
Supply and Demand Status Limited
Quantity per package 320
Ultra Librarian 3D Model Ultra Librarian HLMP-2755 CAD Model

Description

The Broadcom Limited HLMP-2755 optoelectronic component is a high-quality electronic component that is designed for use in a variety of applications.

  • Color: Yellow
  • Voltage Rating: 2.1V
  • Mounting: Through-hole
  • Lens Style/Size: Square lens with a flat top of 8.89mm
  • Peak Wavelength: 583nm
  • Millicandela Rating: 70mcd
  • Current: 25mA
  • Package Quantity: 320
