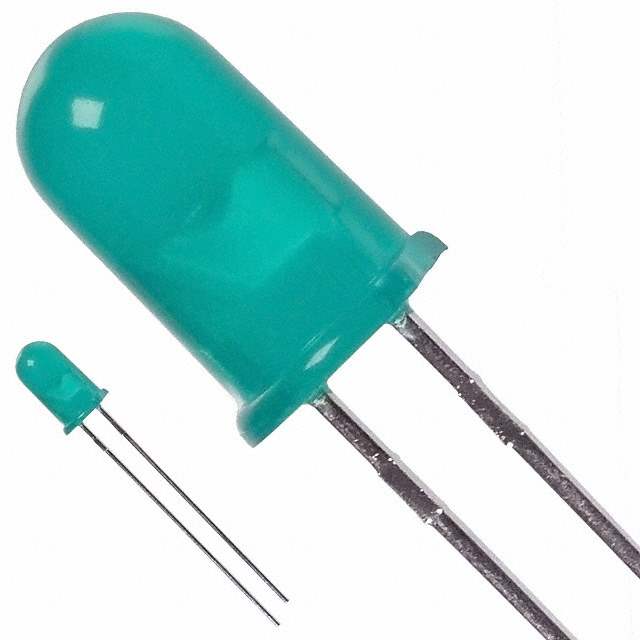

HLMP-3962 Real Image
Same model may have multiple batches, images only for reference.

HLMP-3962

Part No HLMP-3962
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GRN DIFF 5MM ROUND T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green
Lens Color Green
Lens Transparency Diffused
Millicandela Rating 10.6mcd
Lens Style/Size Round with Domed Top, 5mm (T-1 3/4), 4.83mm
Forward Voltage 2.1V
Current - Test 10mA
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 569nm
Wavelength - Peak 565nm
Case / Package T-1 3/4
Height (Max) 9.19mm
Win Source Part Number 068157-HLMP-3962
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-3962 CAD Model

Description

The Broadcom Limited HLMP-3962 is a green through-hole LED with a viewing angle of 60°.

  • Package Size: T-1 3/4
  • Height: 9.19mm
  • Forward Voltage: 2.1V
  • Millicandela Rating: 10.6mcd
  • Wavelength-Dominant: 569nm
  • Wavelength-Peak: 565nm
  • Lens Color: Green
  • Lens Transparency: Diffused
  • Lens Style/Size: Round with a domed top, 5mm (T-1 3/4), 4.83mm
  • Current Test: 10mA
  • Package Quantity: 2000
