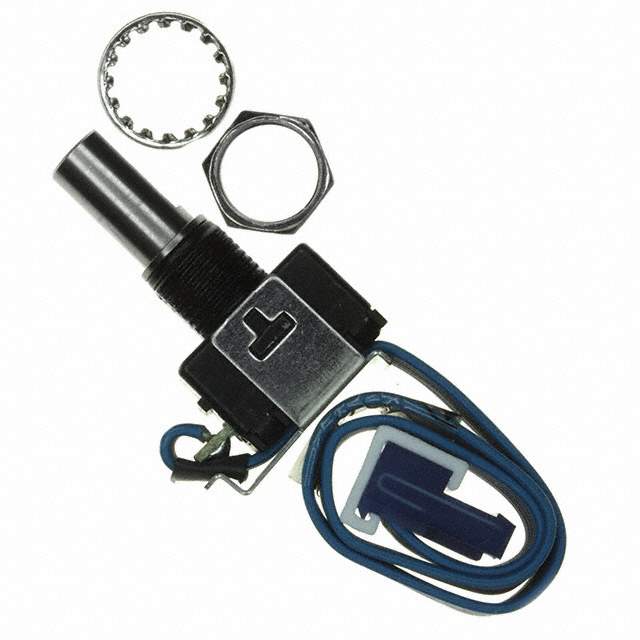

HRPG-AD32#16C Real Image
Same model may have multiple batches, images only for reference.

HRPG-AD32#16C

Part No HRPG-AD32#16C
Manufacturer Broadcom Limited
Catalog Rotary Switches
Description Optical Encoder Rotary Incremental Flat Straight Digital Square Wave Panel Mount Cable 32CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Built in Switch No
Mounting SMD (SMT)
Case / Package Module
Detent Yes
Encoder Type Optical
Lead Free Yes
Maximum Operating Temperature 70 °C
Max Supply Voltage 5.5 V
Min Operating Temperature 0 °C
Min Supply Voltage 4.5 V
Mount Panel
Number of Channels 2
Number of Pins 5
Orientation Vertical
Output Type Incremental, Quadrature
Pulses per Revolution 128
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Cable
Win Source Part Number 1033003-HRPG-AD32#16C
Categories Rotary Switches
Manufacturer Broadcom Limited
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian HRPG-AD32#16C CAD Model

Description

The Broadcom Limited HRPG-AD32#16C is an optical rotary encoder that has two channels and five pins.

  • Channels: two
  • Pins: five
  • Output Type: incremental, quadrature
  • Resolution: 128 pulses per revolution
  • Detent: yes
  • Mounting: panel
  • Maximum Operating Temperature: 70 °C
  • Minimum Operating Temperature: 0 °C
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Packaging: tape and reel
  • Maximum Supply Voltage: 5.5V
  • Minimum Supply Voltage: 4.5V
  • Type: rotary switch
  • Applications: various
  • Supply Status: short supply
  • Popularity: low
