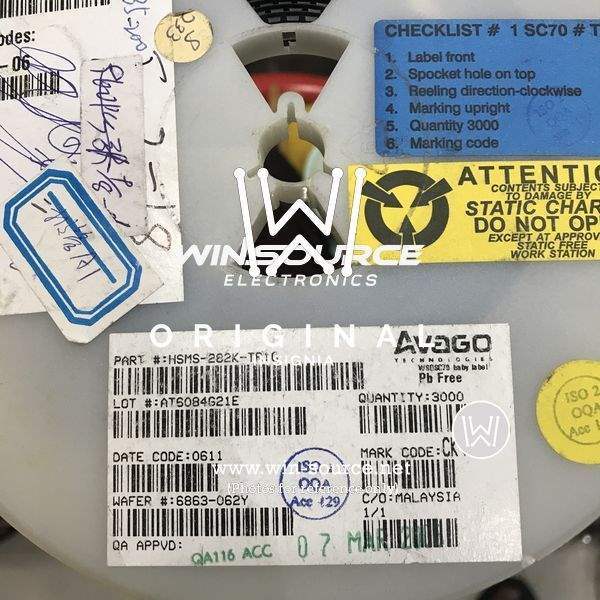

HSMS-282K-TR1 Broadcom Limited HSMS-282K-TR1 Real Image HSMS-282K-TR1 label picture
Same model may have multiple batches, images only for reference.
HSMS-282K-TR1 Broadcom Limited HSMS-282K-TR1 Real Image HSMS-282K-TR1 label picture
HSMS-282K-TR1 Broadcom Limited HSMS-282K-TR1 Real Image HSMS-282K-TR1 label picture
Same model may have multiple batches, images only for reference.

HSMS-282K-TR1

Part No HSMS-282K-TR1
Manufacturer Broadcom Limited
Catalog RF Diodes
Description Surface Mount RF Schottky Barrier Diodes | RF DIODE SCHOTTKY 15V SOT363
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Tape and Reel
Status Obsolete
Diode Type Schottky - 1 Pair Isolated
Voltage - Peak Reverse (Maximum) 15V
Current - Max 1A
Capacitance at Vr, F 1pF at 0V, 1MHz
Resistance at If, F 12Ohm at 5mA, 1MHz
Temperature Range - Operating 150°C
Manufacturer Package 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Family Part Number HSMS-282K
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 718568-HSMS-282K-TR1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMS-282K-TR1 CAD Model

Description

The Broadcom Limited 718568-HSMS-282K-TR1 is a high-quality Schottky diode suitable for use in various electronic products.

  • Maximum Current: 1A
  • Voltage Peak Reverse: 15V
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Suitable for: Power supplies, inverters, and other industrial applications
