Same model may have multiple batches, images only for reference.

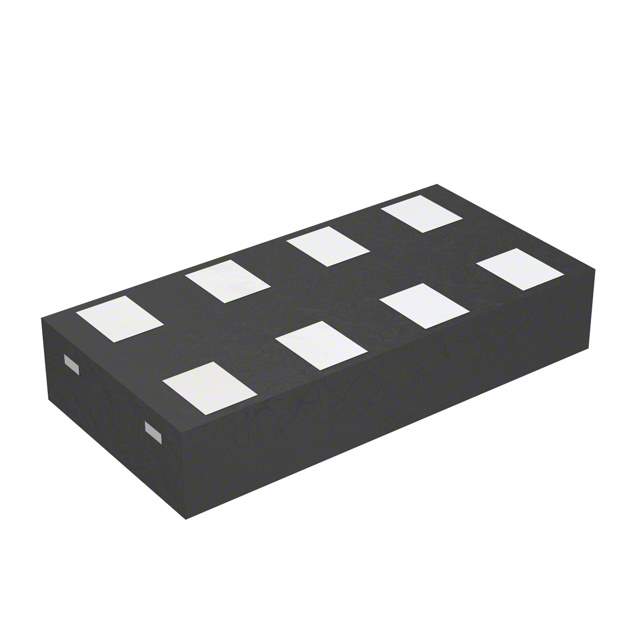

RB521ZS8A30TE61 Real Image
Same model may have multiple batches, images only for reference.

RB521ZS8A30TE61

Part No RB521ZS8A30TE61
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V 8HMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Diode Configuration 4 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Operating Temperature - Junction 150°C (Maximum)
Mounting Style SMD
Manufacturer Package 8-XFDFN
Supplier Device Package 8-HMD (1.6x0.8)
Part Number Series RB521ZS8A30
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804844-RB521ZS8A30TE61
Ultra Librarian 3D Model Ultra Librarian RB521ZS8A30TE61 CAD Model

Description

The RB521ZS8A30TE61 is a Schottky diode from Rohm Semiconductor. It is manufactured by Rohm Semiconductor.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current Per Diode: 100mA
  • Diode Configuration: 4 independent
  • Supplier Device Package: 8-HMD (1.6x0.8)
  • Mounting: SMD
  • Maximum Operating Temperature: 150°C
  • Packaging: Reel
  • Manufacturer Package: 8-XFDFN
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (unlimited)
  • Part Number Series: RB521ZS8A30
