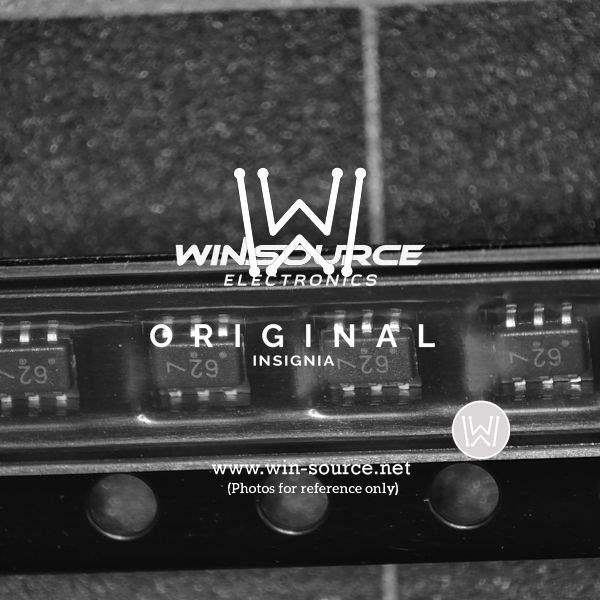

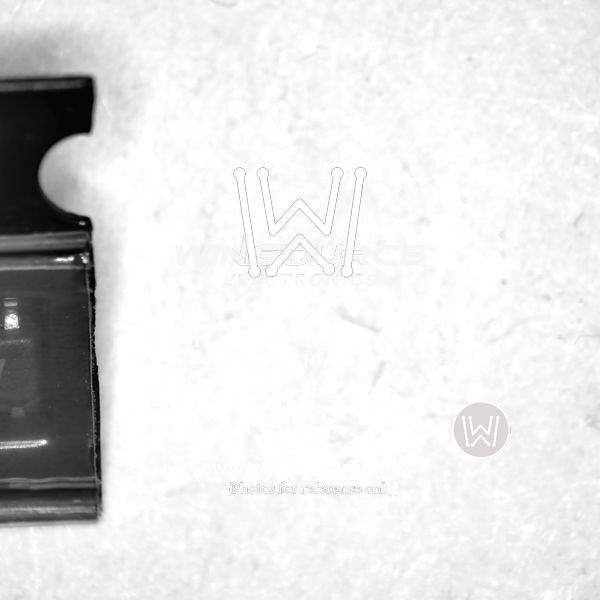

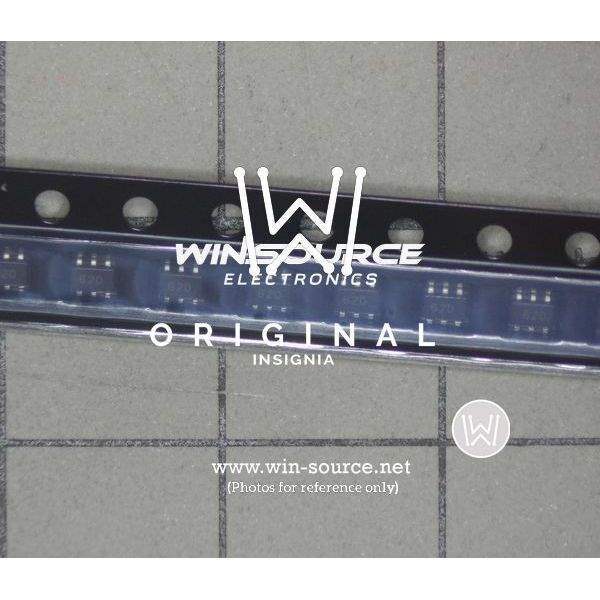

MGA-62563-TR1G Broadcom Limited MGA-62563-TR1G Real Image MGA-62563-TR1G real image MGA-62563-TR1G Real Image1 MGA-62563-TR1G Real Image2
Same model may have multiple batches, images only for reference.
MGA-62563-TR1G Broadcom Limited MGA-62563-TR1G Real Image MGA-62563-TR1G real image MGA-62563-TR1G Real Image1 MGA-62563-TR1G Real Image2
MGA-62563-TR1G Broadcom Limited MGA-62563-TR1G Real Image MGA-62563-TR1G real image MGA-62563-TR1G Real Image1 MGA-62563-TR1G Real Image2
Same model may have multiple batches, images only for reference.

MGA-62563-TR1G

Part No MGA-62563-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP MMIC LNA 500MHZ SOT-363
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Frequency 100MHz to 3GHz
P1dB 18dBm (63.1mW)
Gain 22dB
Noise Figure 0.8dB
Supply Voltage - Operating 3 V to 5 V
Operating Supply Current 47mA to 77mA
Test Frequency 500MHz
Case / Package SOT-363, SC70
Win Source Part Number 023208-MGA-62563-TR1G
Family Name MGA-62563
Introduction Date April 01, 2004
ECCN 5A991.g
Country of Origin Malaysia, Thailand
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MGA-62563-TR1G CAD Model

Description

The Broadcom Limited 023208-MGA-62563-TR1G is a high-performance RF/IF and RFID electronic component that is currently active in the market.

  • Packaging: Reel-TR
  • Test Frequency: 500MHz
  • Frequency Range: 100MHz to 3GHz
  • Gain: 22dB
  • Noise Figure: 0.8dB
  • P1dB: 18dBm (63.1mW)
  • Supply Voltage: 3V to 5V
  • Operating Supply Current: 47mA to 77mA
  • Package: SOT-363, SC70
  • Usage: Commonly used part with a high popularity rate in the market
