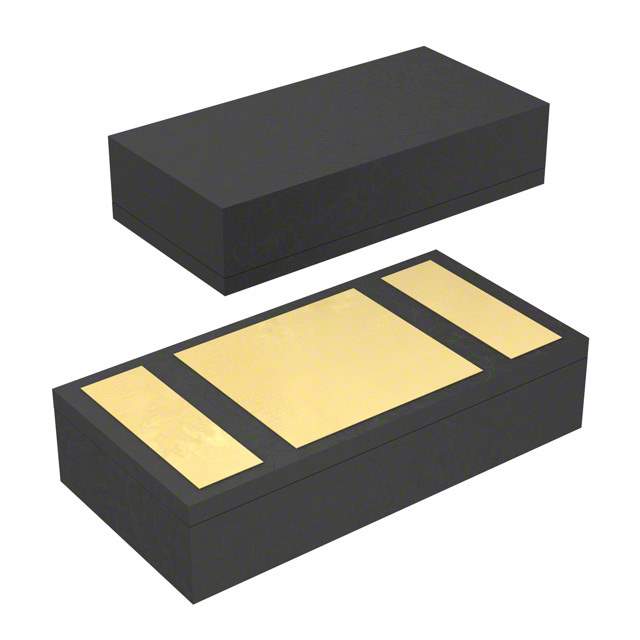

VMMK-2103-TR1G Real Image
Same model may have multiple batches, images only for reference.

VMMK-2103-TR1G

Part No VMMK-2103-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP CELLULAR 500MHZ-6GHZ 0402 / VMMK-2103 0.5 to 6 GHz Bypass E-pHEMT LNA in Wafer Level Package
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Reel
Part Status Obsolete (End Of Life)
Frequency 500MHz ~ 6GHz
P1dB 0dBm
Gain 14dB
Noise Figure 2.1dB
RF Type Cellular, PCS
Supply Voltage (V) 5V
Current - Supply 23mA
Test Frequency 3GHz
Manufacturer Package 0402
Supplier Device Package 0402
Manufacturer Pack Quantity 5,000
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804509-VMMK-2103-TR1G
Ultra Librarian 3D Model Ultra Librarian VMMK-2103-TR1G CAD Model

Description

The Broadcom Limited 804509-VMMK-2103-TR1G is an obsolete (End of Life) product.

  • Packaging: Reel
  • Manufacturer: Broadcom Limited
  • Win Source Part Number: 804509-VMMK-2103-TR1G
  • Test Frequency: 3GHz
  • Frequency Range: 500MHz to 6GHz
  • Gain: 14dB
