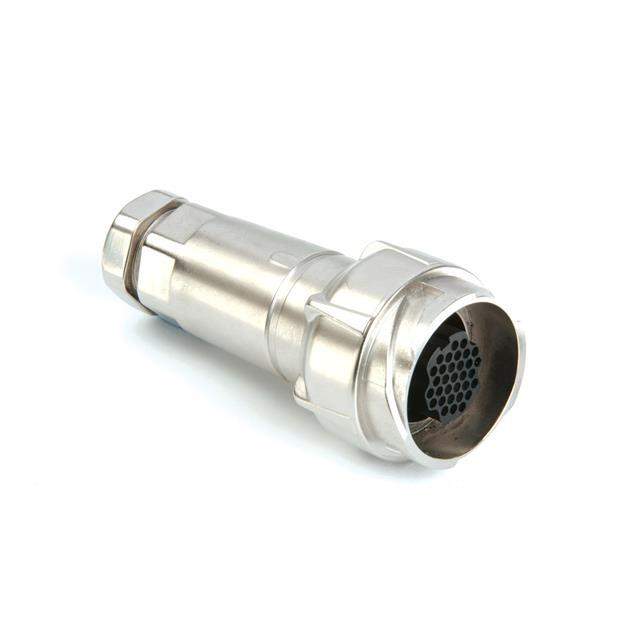

PXM7011/32P/CR/1113 Real Image
Same model may have multiple batches, images only for reference.

PXM7011/32P/CR/1113

Part No PXM7011/32P/CR/1113
Manufacturer Bulgin
Catalog Circular Connectors
Description CONN RCPT HSG MALE 32POS INLINE / 32 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
Datasheet
PXM7011/32P/CR/1113 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Bulgin
Series Buccaneer® 7000
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 32 (Power)
Contact Type Crimp and Solder Cup
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Housing Color Silver
Ingress Protection IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features Backshell
Shielding Unshielded
Note Contacts Not Included
Contact Shape Circular
Temperature Range - Operating -40°C ~ 120°C
Base Product Number PXM7011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 10
Win Source Part Number 1087040-PXM7011/32P/CR/1113
Ultra Librarian 3D Model Ultra Librarian PXM7011/32P/CR/1113 CAD Model

Description

The PXM7011/32P/CR/1113 is a circular connector housing manufactured by Bulgin.

  • Manufacturer: Bulgin
  • Series: Buccaneer® 7000
  • Gender: Male pins
  • Number of Positions: 32 power
  • Feature: Backshell
  • Connector Type: Receptacle
  • Contact Termination: Crimp and solder cup
  • Fastening Type: Bayonet lock
  • Ingress Protection: IP66/IP68/IP69K rated (dust tight, water-resistant, and waterproof)
  • Color: Silver
  • Material: Zinc alloy with a nickel finish
  • Alternative Parts: None
  • RoHS Compliant: yes
