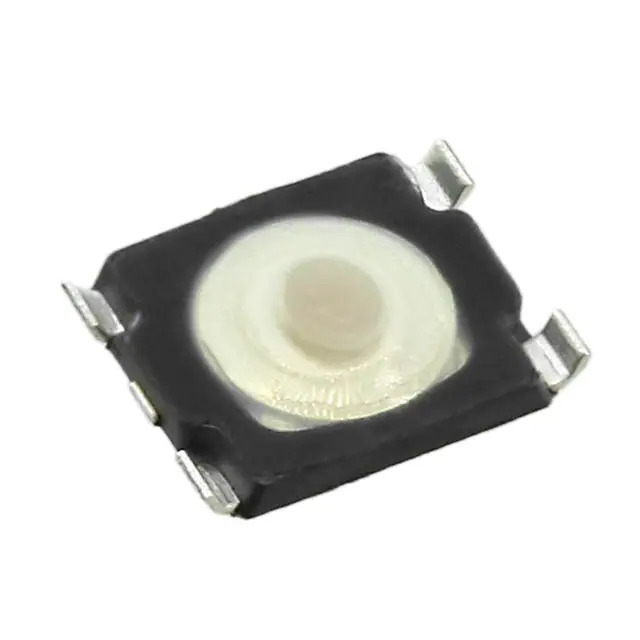

KMT022NGJLHS C&K Components
Same model may have multiple batches, images only for reference.

KMT022NGJLHS

Part No KMT022NGJLHS
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
KMT022NGJLHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K
Series KMT0
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.65mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 3.00mm x 2.60mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection IP68 - Dust Tight, Waterproof
Features Tactile Feedback
Temperature Range - Operating -40°C ~ 85°C
Actuator Material -
Switch Travel 0.15mm
Mechanical Life 600,000 Cycles
Base Product Number KMT022
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376460-KMT022NGJLHS
Ultra Librarian 3D Model Ultra Librarian KMT022NGJLHS CAD Model

Description

The electronic component with Id 1176749 is a tactile switch manufactured by C&K.

  • Switch Function: SPST-NO
  • Operating Temperature: -40°C to 85°C
  • Package Option: tape & reel
  • Mechanical Life: 600,000 cycles
  • Operating Force: 160gf
  • Actuator Height: 0.65mm
  • Outline Dimensions: 3.00mm x 2.60mm
  • Illumination: Non-Illuminated
  • IP Rating: IP68
