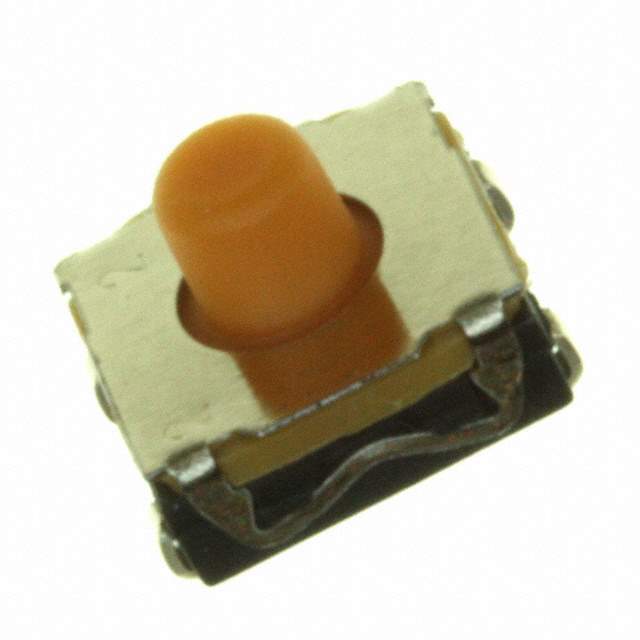

KSC422J 70SH LFS Real Image
Same model may have multiple batches, images only for reference.

KSC422J 70SH LFS

Part No KSC422J 70SH LFS
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Packaging Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.05A at 32VDC
Actuator Type Standard
Mounting Style SMD
Actuator Height off PCB, Vertical 5.20mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Operating Force 170gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.50mm
Mechanical Life 1,000,000 Cycles
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803844-KSC422J 70SH LFS
Ultra Librarian 3D Model Ultra Librarian KSC422J 70SH LFS CAD Model

Description

The C&K KSC422J 70SH LFS is a dust-tight and waterproof SPST-NO switch with J lead termination style and SMD mounting style.

  • Switch Type: SPST-NO
  • Termination Style: J Lead
  • Mounting Style: SMD
  • Actuator Type: Standard
  • Actuator Orientation: Top Actuated
  • Switch Travel: 0.50mm
  • Actuator Height: 5.20mm off the PCB, Vertical
  • Operating Force: 170gf
  • Mechanical Life: 1,000,000 cycles
  • Circuit: Off-Mom
  • Illumination: Non-Illuminated
  • Outline: 6.20mm x 6.20mm
  • Contact Rating: 0.05A @ 32VDC

The switch is suitable for use in industrial applications.
