Same model may have multiple batches, images only for reference.

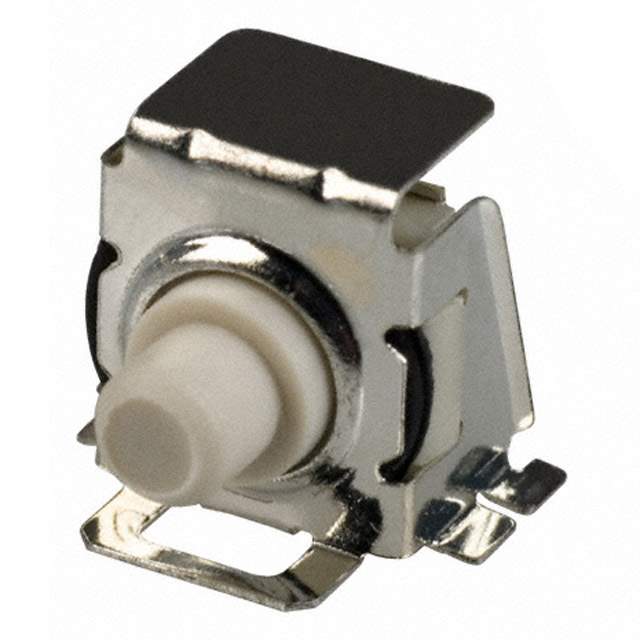

KT11S1SA2M35LFG Real Image
Same model may have multiple batches, images only for reference.

KT11S1SA2M35LFG

Part No KT11S1SA2M35LFG
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 1VA 32V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Datasheet
KT11S1SA2M35LFG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K
Series KT
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 1VA @ 32VAC/DC
Actuator Type Plunger for Cap
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 7.77mm x 6.41mm
Illumination Non-Illuminated
Operating Force 300gf
Ingress Protection IP57 - Dust Protected, Waterproof
Features Sealed
Temperature Range - Operating -40°C ~ 90°C
Mechanical Life 100,000 Cycles
Base Product Number KT11S1
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1350798-KT11S1SA2M35LFG
Ultra Librarian 3D Model Ultra Librarian KT11S1SA2M35LFG CAD Model

Description

The KT11S1SA2M35LFG switch is a SPST-NO circuit tactile switch that features a plunger for cap actuator type and is side actuated.

  • Circuit: SPST-NO
  • Actuator Type: Plunger for Cap
  • Actuation Direction: Side Actuated
  • Operating Force: 300gf
  • Mechanical Life: 100,000 Cycles
  • Sealed: Yes
  • Ingress Protection: IP57
  • Contact Rating: 1VA @ 32VAC/DC
  • Mounting Type: Surface Mount
  • Termination Style: Right Angle
  • Outline: 7.77mm x 6.41mm
  • Illumination: Non-Illuminated
  • Temperature Range: -40°C ~ 90°C
  • Manufacturer: C&K
