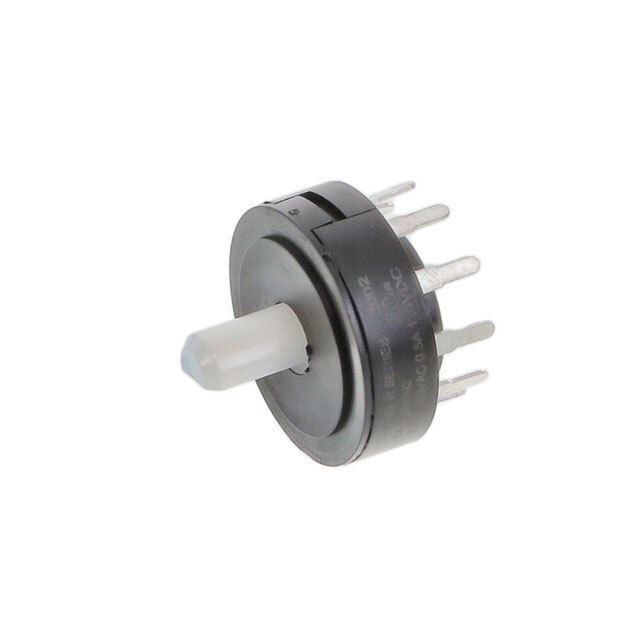

R20307RN02Q

Part No R20307RN02Q
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 3POS 5A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Positions 3
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DP3T, Adjacent Contact
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 5A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 12.70mm
Angle of Throw 36°
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Depth Behind Panel 10.29mm
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1559556-R20307RN02Q
Ultra Librarian 3D Model Ultra Librarian R20307RN02Q CAD Model
