Same model may have multiple batches, images only for reference.

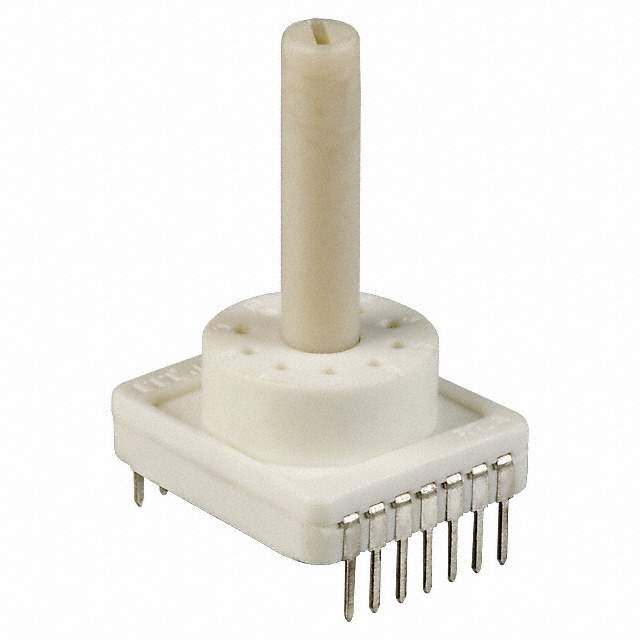

RTAP30112SSD25S Real Image
Same model may have multiple batches, images only for reference.

RTAP30112SSD25S

Part No RTAP30112SSD25S
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 12POS 150MA 60V
Datasheet
RTAP30112SSD25S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Status Obsolete(EOL)
Number of Positions 12
Index Stops Continuous
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP12T
Contact Timing Non-Shorting (BBM)
Current Rating 150mA (AC/DC)
Voltage Rating - AC 60V
Voltage Rating - DC 60V
Actuator Type Round (5.9mm Dia)
Actuator Length 25.00mm
Angle of Throw 30°
Contact Finish Silver
Mounting Through Hole
Termination Style PC Pin
Depth Behind Panel 12.60mm
Operating Force, Torque 5 N-cm
Win Source Part Number 133465-RTAP30112SSD25S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RTAP30112SSD25S CAD Model

Description

The RTAP30112SSD25S is a non-shorting (BBM) switch from C&K Components.

  • Positions: 12
  • Circuit per Deck: SP12T
  • Current Rating: 150mA (AC/DC)
  • Voltage Rating: 60V AC/DC
  • Mounting Type: Through Hole
  • Actuator Type: Round
  • Actuator Diameter: 5.9mm
  • Actuator Length: 25.00mm
  • Operating Force: 5 N-cm
  • Stops: Continuous Index
  • Angle of Throw: 30°
  • Depth Behind Panel: 12.60mm
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Limited
