Same model may have multiple batches, images only for reference.

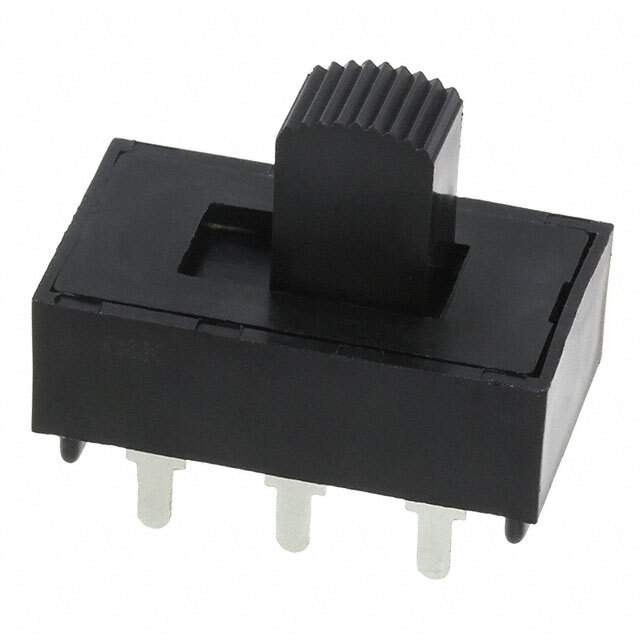

S602031MS02Q Real Image
Same model may have multiple batches, images only for reference.

S602031MS02Q

Part No S602031MS02Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 12A 125V  /  Slide Switch DPDT Through Hole
Datasheet
S602031MS02Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 12A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Standard
Actuator Length 8.51mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S602031
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names *S602031MS02Q,S602031MS02Q-ND,CKN10660
Standard Package 1
Win Source Part Number 1031827-S602031MS02Q
Ultra Librarian 3D Model Ultra Librarian S602031MS02Q CAD Model

Description

The S602031MS02Q slide switch is manufactured by C&K.

  • Circuit: DPDT
  • Switch Function: On-On
  • Voltage Rating: 125V AC/DC
  • Current Rating: 12A (AC), 1A (DC)
  • Actuator Material: Polyamide (PA66) and Nylon 6/6
  • Mounting Style: Through-Hole
  • Termination: PC Pin
  • Operating Temperature Range: -30°C to 65°C
