Same model may have multiple batches, images only for reference.

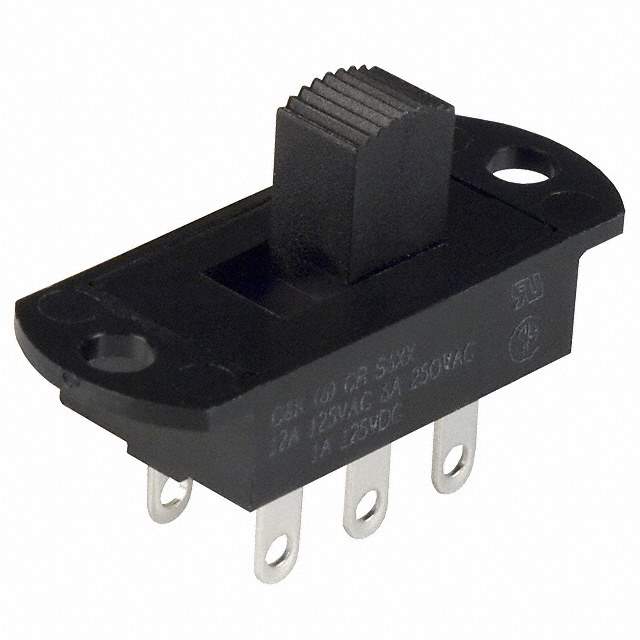

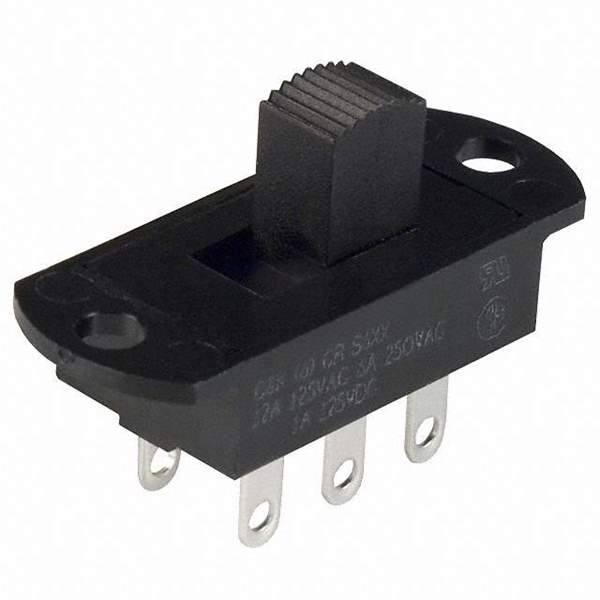

S602031SS03Q Real Image
Same model may have multiple batches, images only for reference.

S602031SS03Q

Part No S602031SS03Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 12A 125V  /  Slide Switch DPDT Panel Mount
Datasheet
S602031SS03Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 12A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Standard
Actuator Length 8.51mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S602031
Other Names *S602031SS03Q,CKC5013
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233176-S602031SS03Q
Ultra Librarian 3D Model Ultra Librarian S602031SS03Q CAD Model

Description

The S602031SS03Q is a DPDT On-On Standard Actuator Type Slide Switch from C&K. It comes with silver contact finish, copper contact material, and polyamide (PA66), Nylon 6/6 actuator material.

  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Standard
  • Contact Finish: Silver
  • Contact Material: Copper
  • Actuator Material: Polyamide (PA66), Nylon 6/6
  • Voltage: AC voltage up to 125 V and DC voltage up to 125 V
  • Switch Travel: 4.57mm
  • Actuator Length: 8.51mm
  • Electrical Life: 10,000 cycles
  • Current Rating: 12A (AC), 1A (DC)
  • Operating Temperature Range: -30°C to 65°C
  • Mounting: Panel Mounted
  • Package: Bulk package
