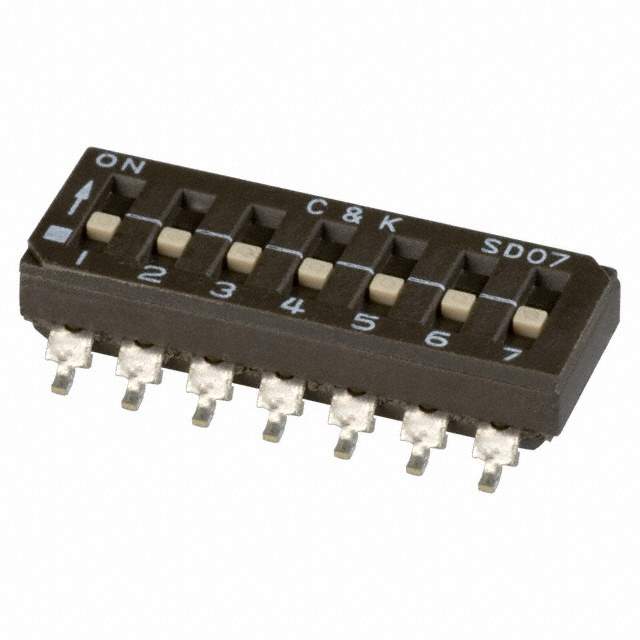

Same model may have multiple batches, images only for reference.

SD07H0SB

Name: SD07H0SB
Brand: C&K Components
SKU: 1233808
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SD07H0SB
Manufacturer	C&K Components
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 7 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Datasheet	SD07H0SB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>DIP Switches
Mfr	C&K
Series	SD
Package	Tube
Circuit	SPST
Number of Positions	7
Current Rating (Amps)	100mA
Voltage Rating	25VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Material	Beryllium Copper
Contact Finish	Gold
Height Above Board	0.170" (4.33mm)
Mounting	SMD (SMT)
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	Tape Seal
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Polyphthalamide (PPA)
Length	0.758" (19.25mm)
Mechanical Life	2,000 Cycles
Electrical Life	2,000 Cycles
Base Product Number	SD07H0
Other Names	CKN6123,*SD07H0SB
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	1233808-SD07H0SB
Ultra Librarian 3D Model	Ultra Librarian SD07H0SB CAD Model

Alternative Products

Description

The SD07H0SB is a DIP switch from C&K Components.

Circuit: SPST
Actuator Type: Slide
Number of Positions: 7
Pitch: 0.100 inches (2.54mm), full
Termination Style: Gull Wing
Tape Seal: Yes
Contact Finish: Gold
Contact Material: Beryllium Copper
Voltage Rating: 25VDC
Height Above Board: 0.170 inches (4.33mm)
Length: 0.758 inches (19.25mm)
Package: Tube
Mechanical Life: 2,000 cycles
Electrical Life: 2,000 cycles
Washable: Yes
Temperature Range: -40°C ~ 85°C
RoHS Compliant: No
