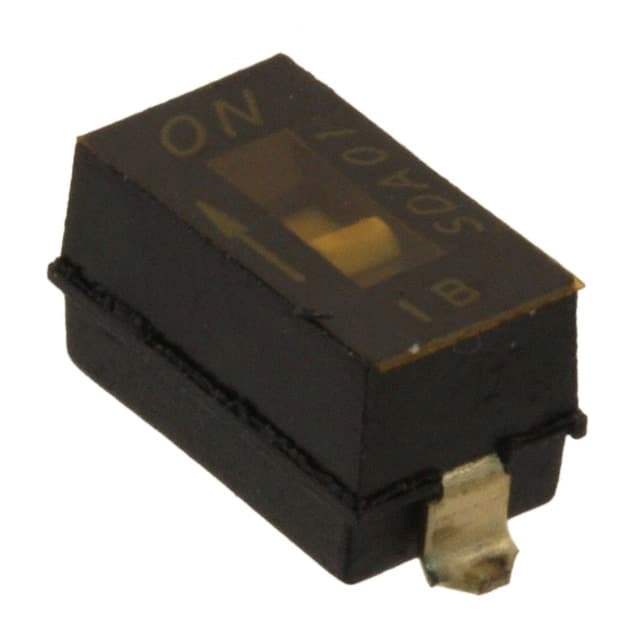

Same model may have multiple batches, images only for reference.

SDA01H0SBR

Name: SDA01H0SBR
Brand: C&K Components
SKU: 664685
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SDA01H0SBR
Manufacturer	C&K Components
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheet	SDA01H0SBR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - DIP Switches
Mfr	C&K Components
Series	SDA
Package	Tape & Reel
Product Status	Active
Circuit	SPST
Number of Positions	1
Current Rating (Amps)	25mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Material	Beryllium Copper
Contact Finish	Gold
Height Above Board	0.175" (4.45mm)
Mounting Type	Surface Mount
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	Tape Seal
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Polyphenylene Sulfide (PPS)
Length	0.178" (4.52mm)
Mechanical Life	1,000 Cycles
Electrical Life	1,000 Cycles
Base Product Number	SDA01H
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	664685-SDA01H0SBR
Ultra Librarian 3D Model	Ultra Librarian SDA01H0SBR CAD Model

Alternative Products

Description

The SDA01H0SBR is a DIP switch from the SDA series by C&K Components.

Switch Type: DIP
Series: SDA
Pole Throw Configuration: SPST
Actuator Type: Slide
Number of Positions: 1
Pitch: 0.100" (2.54mm)
Termination Style: Gull Wing
Seal: Tape
Contact Finish: Gold
Contact Material: Beryllium Copper
Voltage Rating: 24VDC
Current Rating: 25mA
Electrical Life: 1,000 Cycles
Mechanical Life: 1,000 Cycles
Actuator Level: Flush, Recessed
Washable: Yes
Mounting Style: Surface Mount
Operating Temperature: -40°C to 85°C
Height Above Board: 0.175" (4.45mm)
Length: 0.178" (4.52mm)
Packaging: Tape & Reel
Standard Package Quantity: 1,500 pcs
