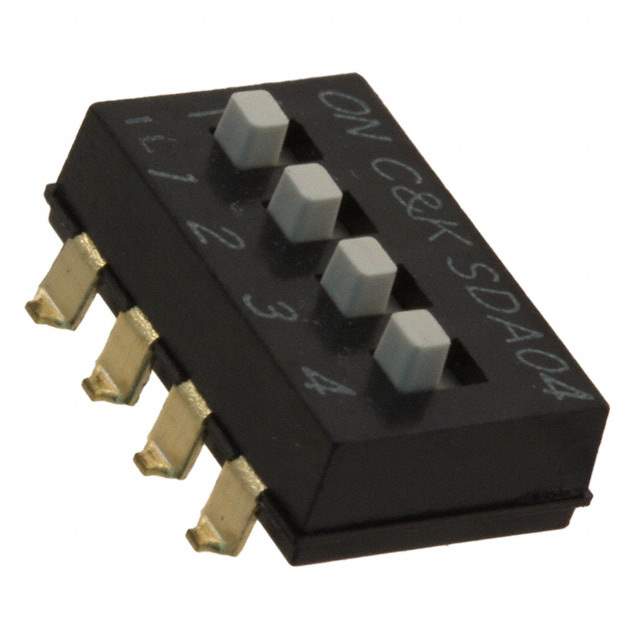

SDA04H1SBD Real Image
Same model may have multiple batches, images only for reference.

SDA04H1SBD

Part No SDA04H1SBD
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
SDA04H1SBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.476" (12.09mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 188916-SDA04H1SBD
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDA04H1SBD CAD Model

Description

The SDA04H1SBD slide switch from C&K is a surface mount switch with a SPST circuit and an Off-Mom switch function.

  • Mount: Surface Mount
  • Circuit: SPST
  • Switch Function: Off-Mom
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Electrical Life: 1,000 cycles
  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Termination Style: Gull Wing
  • Package: Tube/Rail
  • Material: Polyphenylene Sulfide (PPS)
  • Contact Finish: Gold
  • Operating Temperature: -40°C to 85°C
