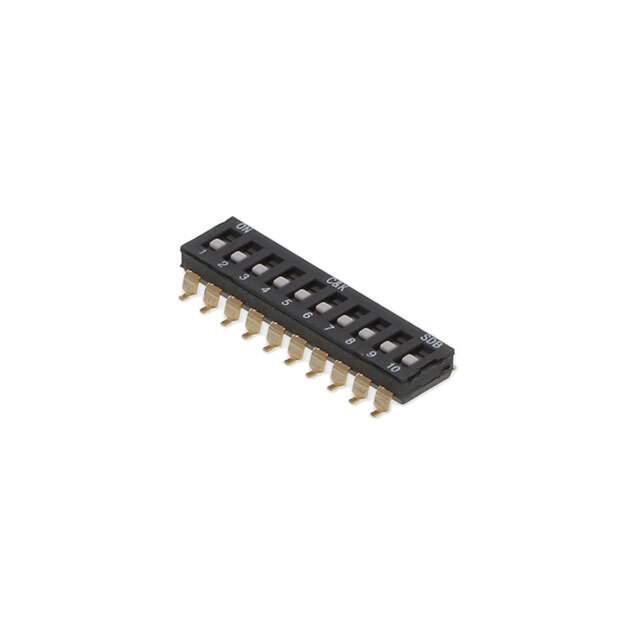

SDB10H0SBD Real Image
Same model may have multiple batches, images only for reference.

SDB10H0SBD

Part No SDB10H0SBD
Manufacturer C&K Components
Catalog DIP Switches
Description DIP 10P FLUSH ACT. GOLD CONTACT.  /  Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDB10H0SBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDB
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.157" (4.00mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA46), Nylon 4/6
Length 1.043" (26.49mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN12009,2266-SDB10H0SBD
Standard Package 18
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233713-SDB10H0SBD
Ultra Librarian 3D Model Ultra Librarian SDB10H0SBD CAD Model

Description

The SDB10H0SBD is a DIP switch from C&K.

  • Circuit: Single-pole single-throw (SPST)
  • Positions: 10
  • Actuator Type: Slide
  • Actuator Level: Flush and recessed
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Washable: No
  • Mounting Type: Surface Mount Device (SMD)
  • Body Material: Polyamide (PA46), Nylon 4/6
  • Contact Finish: Gold
  • Temperature Range: -40°C ~ 85°C
  • Length: 1.043" (26.49mm)
  • Height Above Board: 0.157" (4.00mm)
  • Status: Obsolete
