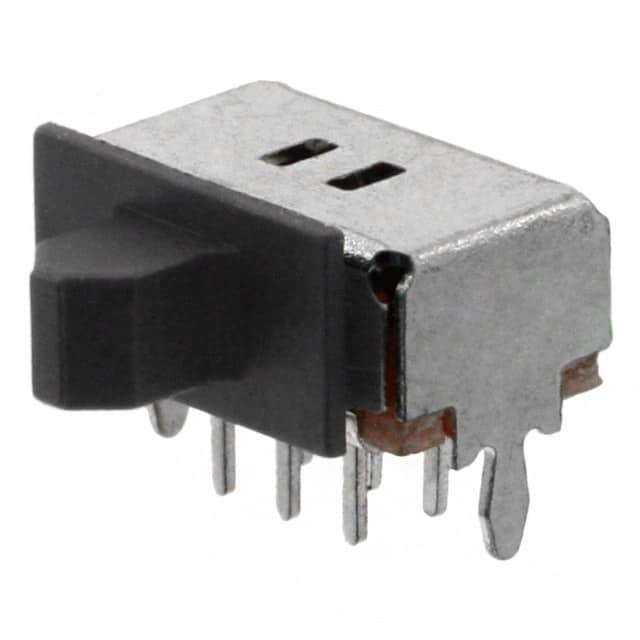

SK-22D01-MG 5 NS C&K Components
Same model may have multiple batches, images only for reference.

SK-22D01-MG 5 NS

Part No SK-22D01-MG 5 NS
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 30V / Slide Switch DPDT Through Hole, Right Angle
Datasheet
SK-22D01-MG 5 NS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series SK, COMAX
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 5.00mm
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Actuator Material Polybutylene Terephthalate (PBT)
Switch Travel 2.00mm
Electrical Life 10,000 Cycles
Operating Force 150/300gf
Base Product Number SK-22D
Other Names SK-22D01-MG5NS,SK22D01MG5NS,CKN10364,HASK0091,*SK-22D01-MG 5 NS
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233034-SK-22D01-MG 5 NS
Ultra Librarian 3D Model Ultra Librarian SK-22D01-MG 5 NS CAD Model

Description

The C&K SK-22D01-MG 5 NS is a DPDT slide switch that is widely used in various electronic applications.

  • Termination Style: PC pin
  • Actuator Type: standard
  • Manufacturer: C&K
  • Win Source Part Number: 1233034-SK-22D01-MG 5 NS
  • Base Product Number: SK-22D
