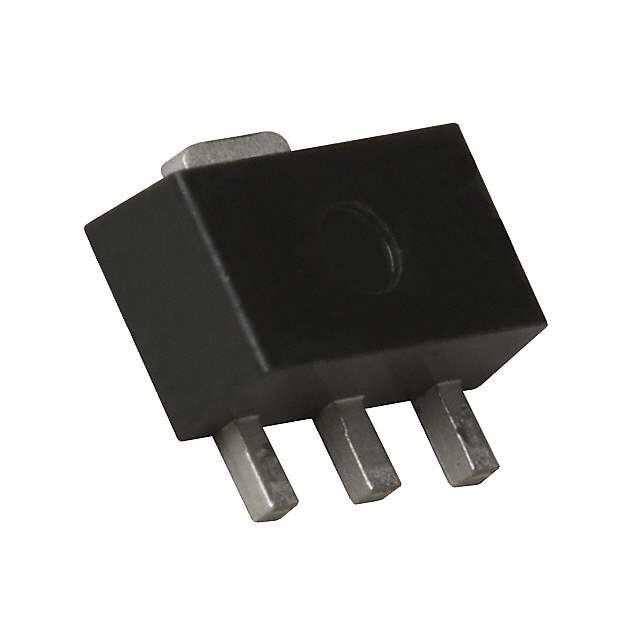

NE46134-T1-AZ Real Image
Same model may have multiple batches, images only for reference.

NE46134-T1-AZ

Part No NE46134-T1-AZ
Manufacturer CEL
Catalog RF Transistors (BJT)
Description RF TRANS NPN 15V 5.5GHZ SOT89
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features RF Transistor NPN 15V 250mA 5.5GHz 2W Surface Mount SOT-89
Manufacturer CEL
Package Reel - TR
Part Status Obsolete
Operating Temperature Range 150°C (TJ)
Mounting Surface Mount
Package TO-243AA
Case / Package SOT-89
Family Name NE46134
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Other Part Number NE46134-AZTR, NE46134T1AZ, NE46134-AZCT, NE46134-AZDKR
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 887197-NE46134-T1-AZ
Ultra Librarian 3D Model Ultra Librarian NE46134-T1-AZ CAD Model

Description

The NE46134-T1-AZ is an electronic component manufactured by CEL.

  • Description: RF transistor NPN 15V 250mA 5.5GHz 2W surface mount
  • Package: SOT-89
  • Family: NE46134
  • Category: Discrete Semiconductor Product
  • Status: Obsolete
  • Supply and Demand: Limited
  • Quantity per Package: 1000
