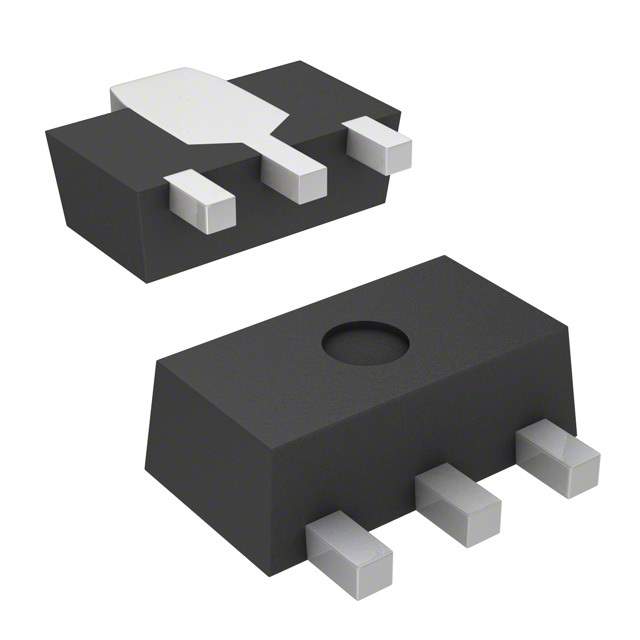

NE46134-T1 Real Image
Same model may have multiple batches, images only for reference.

NE46134-T1

Part No NE46134-T1
Manufacturer CEL
Catalog RF Transistors (BJT)
Description TRANS NPN 1GHZ SOT-89
Datasheet
NE46134-T1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 15V
Frequency - Transition 5.5GHz
Noise Figure (dB Typ @ f) 1.5dB to 2dB @ 500MHz to 1GHz
Maximum Power Dissipation 2W
Typical Gain (hFE) (Min) 40 @ 50mA, 10V
Maximum Current Collector 250mA
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 1082884-NE46134-T1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NE46134-T1 CAD Model

Description

The CEL 1082884-NE46134-T1 transistor is an NPN type with a maximum collector-emitter breakdown voltage of 15V and a maximum current collector of 250mA.

  • Collector-Emitter Breakdown Voltage (Max): 15V
  • Current Collector (Max): 250mA
  • Noise Figure: 1.5dB to 2dB @ 500MHz to 1GHz
  • Frequency Transition: 5.5GHz
  • Gain (hFE) (Min): 40 @ 50mA, 10V
  • Maximum Power Dissipation: 2W
  • Mounting Type: SMD (SMT)
  • Package / Case: SOT-89
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Temperature Range: -150°C to 100°C
