Same model may have multiple batches, images only for reference.

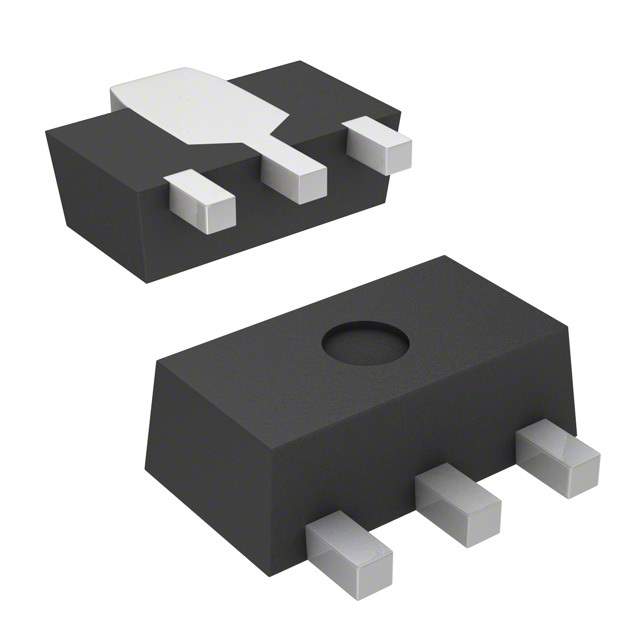

NE85634-T1 Real Image
Same model may have multiple batches, images only for reference.

NE85634-T1

Part No NE85634-T1
Manufacturer CEL
Catalog RF Transistors (BJT)
Description TRANS NPN 1GHZ SOT-89
Datasheet
NE85634-T1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 12V
Frequency - Transition 6.5GHz
Noise Figure (dB Typ @ f) 1.4dB @ 1GHz
Maximum Power Dissipation 2W
Typical Gain (hFE) (Min) 50 @ 20mA, 10V
Maximum Current Collector 100mA
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 1082937-NE85634-T1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NE85634-T1 CAD Model

Description

The CEL NE85634-T1 is an NPN transistor with a SOT-89 case/package.

  • Frequency Transition: 6.5GHz
  • Noise Figure: 1.4dB @ 1GHz
  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 12V
  • Typical Gain (hFE): 50 @ 20mA, 10V
  • Maximum Power Dissipation: 2W
  • Categorized Under: discrete semiconductor products
  • Product Status: obsolete (EOL)
  • Popularity: medium
