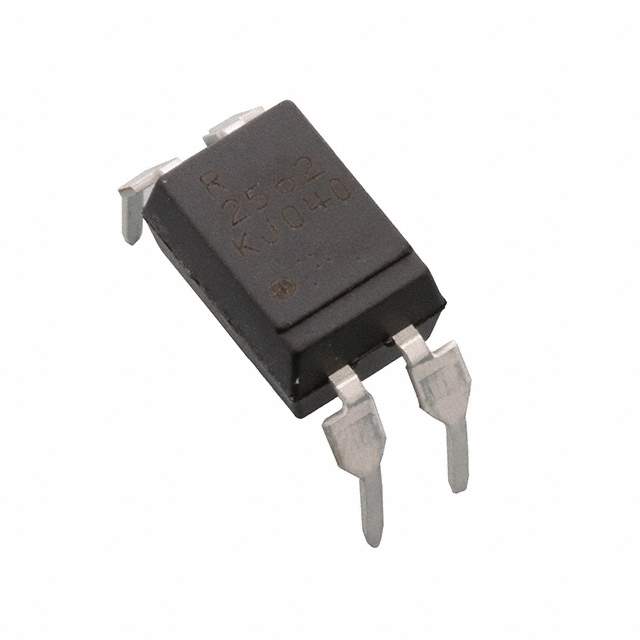

PS2561L1-1-V-A Real Image PS2561L1-1-V-A real image4953
PS2561L1-1-V-A Real Image PS2561L1-1-V-A real image4953
Same model may have multiple batches, images only for reference.

PS2561L1-1-V-A

Part No PS2561L1-1-V-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP
Datasheet
PS2561L1-1-V-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.17V
Continuous forward current- Max 80mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 026878-PS2561L1-1-V-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PS2561L1-1-V-A CAD Model

Description

The PS2561L1-1-V-A is an isolator manufactured by CEL.

  • Packaging: Tube/Rail
  • Mounting Type: Through Hole
  • Output Type: Transistor
  • Forward Voltage: 1.17V
  • Input Type: DC
  • Channel Count: Single
  • Vce Saturation (Max): 300mV
  • Isolation Voltage: 5000Vrms
  • Category: Isolators
  • Popularity: High
  • Temperature Range: -55°C to 100°C
  • Case/Package: 4-DIP
  • Minimum DC Current Transfer Ratio: 80% @ 5mA
  • Maximum DC Current Transfer Ratio: 400% @ 5mA
  • Switching Turn-On and Turn-Off Time: Not Specified
  • Rise and Fall Time: Not Specified
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current Max: 80mA
  • Common-Used Part: Yes
