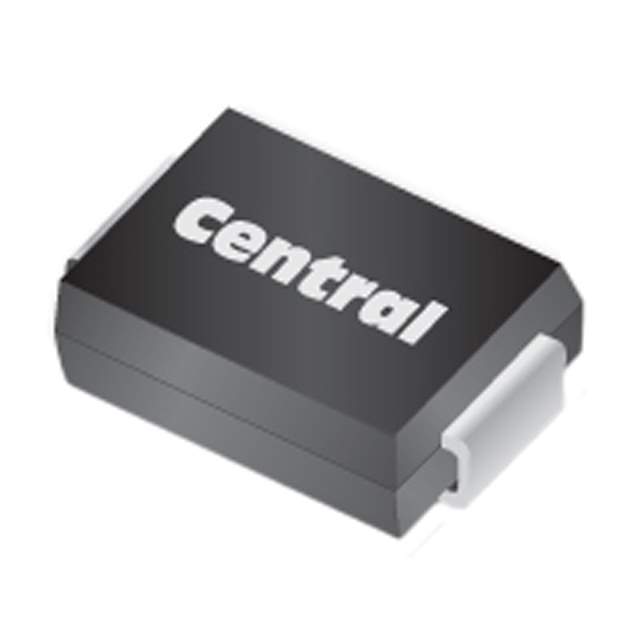

The 1SMC6.0CA is a surface-mount Transient Voltage Suppressor (TVS) diode manufactured by Central Semiconductor Corp. It's designed to protect sensitive electronic components from voltage transients induced by lightning, electrostatic discharge (ESD), and inductive load switching. This TVS diode is characterized by its fast response time, high surge capability, and low clamping voltage, making it suitable for a wide range of applications.

Applications

• Protection of I/O interfaces
• Protection of VCC bus lines
• Protection of signal lines
• Protection of microprocessors and memory devices
• Protection of sensitive electronic equipment in industrial, consumer, and automotive applications

Features

• Surface-mount SMC package
• Unidirectional or bidirectional configuration
• Fast response time
• High surge current capability
• Low clamping voltage
• RoHS compliant

Benefits

• Effective Transient Voltage Suppression: Provides robust protection against voltage surges, preventing damage to sensitive components and improving system reliability.
• Fast Response Time: Quickly clamps transient voltages, minimizing the risk of overvoltage damage.
• Compact Size: The SMC package allows for high-density board layouts.
• High Surge Capability: Can withstand high surge currents without degradation, ensuring long-term protection.
• Easy to Use: Simplified circuit design with minimal external components required.

Additional Details

The 1SMC6.0CA is available in both unidirectional and bidirectional configurations. The unidirectional version is designed for DC circuits, while the bidirectional version is suitable for AC circuits. The TVS diode operates by clamping the voltage to a safe level when a transient occurs, diverting excess current away from the protected components.

Technical Specifications (typical):

• Reverse Stand-Off Voltage (VRWM): 6.0V
• Breakdown Voltage (VBR): 6.67V to 7.37V
• Clamping Voltage (VC): 10.3V
• Peak Pulse Current (IPP): 48.5A
• Power Dissipation (PD): 1500W

The 1SMC6.0CA is a reliable and cost-effective solution for protecting electronic circuits from transient voltage events. Its robust design and excellent performance make it a popular choice for a wide range of applications.
