Same model may have multiple batches, images only for reference.

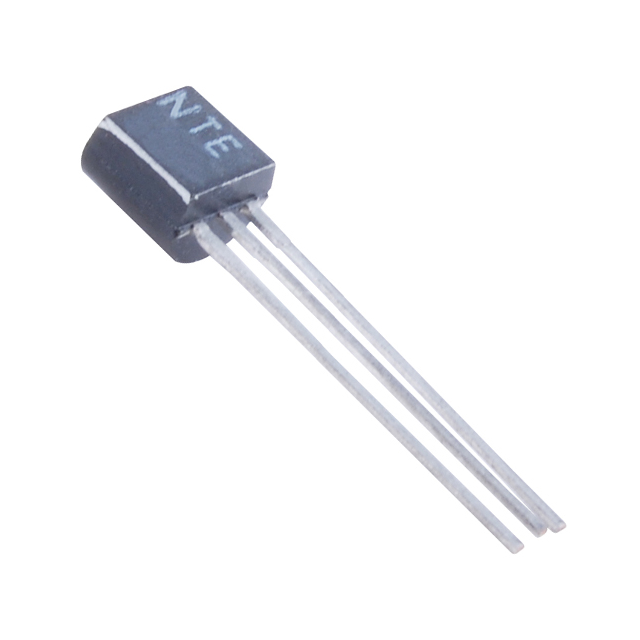

2N3704 Real Image
Same model may have multiple batches, images only for reference.

2N3704

Part No 2N3704
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description TRANS NPN 30V TO-92
Datasheet
2N3704 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Active
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 100 @ 50mA, 2V
Frequency - Transition 100MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-92
Win Source Part Number 1003857-2N3704
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Audio
Ultra Librarian 3D Model Ultra Librarian 2N3704 CAD Model

Description

The 2N3704 is a popular NPN transistor used in audio applications.

  • Manufacturer: Central Semiconductor Corp
  • Temperature Range: -65°C to 150°C
  • Package: TO-92
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Typical Gain: 100 @ 50mA, 2V
  • Collector Cut-off Current: 100nA (ICBO)
  • Popularity: Medium
