Same model may have multiple batches, images only for reference.

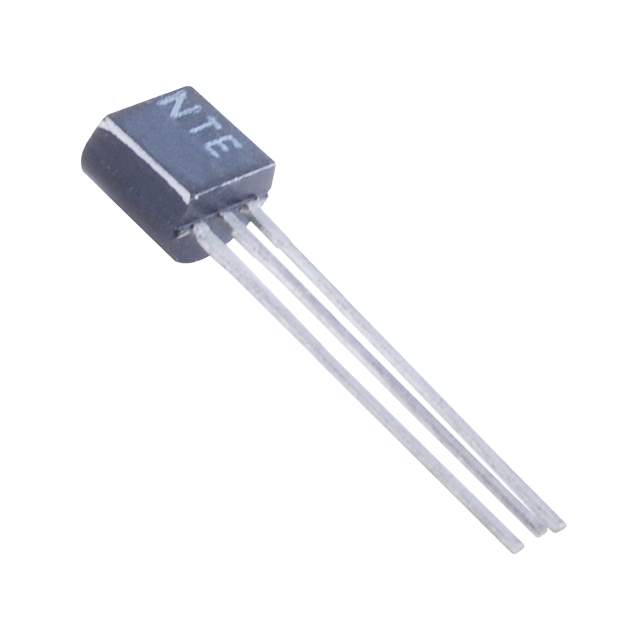

2N5089 Real Image
Same model may have multiple batches, images only for reference.

2N5089

Part No 2N5089
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description TRANS NPN 25V 0.05A TO-92
Datasheet
2N5089 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Active
Transistor Polarity NPN
Maximum Current Collector 50mA
VCEO Maximum Collector-Emitter Breakdown Voltage 25V
Max Vce (sat) 500mV @ 1mA, 10mA
Collector Cut-off Current(Max) 50nA (ICBO)
Typical Gain (hFE) (Min) 400 @ 100μA, 5V
Maximum Power Dissipation 625mW
Frequency - Transition 50MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-92
Win Source Part Number 1003926-2N5089
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2N5089 CAD Model

Description

The Central Semiconductor Corp 2N5089 is a NPN transistor that belongs to the Discrete Semiconductor Products category.

  • Maximum Current Collector: 50mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 25V
  • Maximum Power Dissipation: 625mW
  • Transistor Polarity: NPN
  • Frequency-Transition: 50MHz
  • Temperature Range: -65°C to 150°C (TJ)
  • Case/Package: TO-92
  • Typical Gain (hFE) (Min): 400 @ 100μA, 5V
  • Supply and Demand Status: Balance
