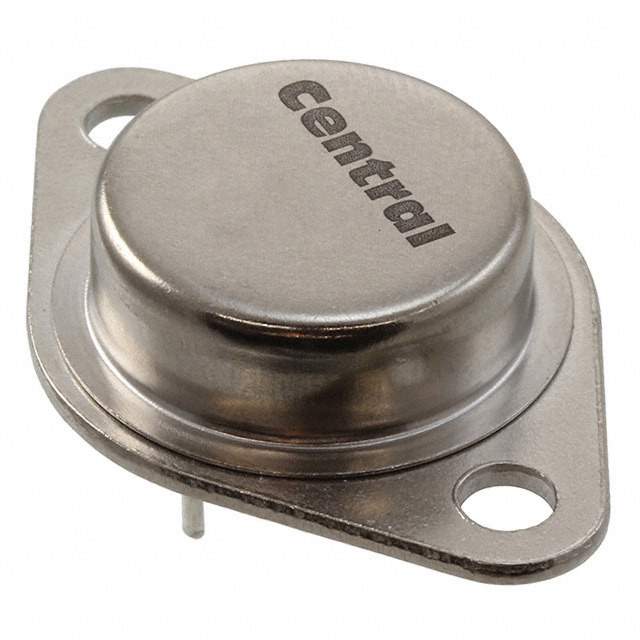

2N6545 Real Image
Same model may have multiple batches, images only for reference.

2N6545

Part No 2N6545
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description TRANS NPN 400V 8A TO-3
Datasheet
2N6545 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Tube/Rail
Status Active
Transistor Polarity NPN
Maximum Current Collector 8A
VCEO Maximum Collector-Emitter Breakdown Voltage 400V
Max Vce (sat) 5V @ 2A, 8A
Typical Gain (hFE) (Min) 7 @ 5A, 3V
Maximum Power Dissipation 125W
Frequency - Transition 28MHz
Temperature Range - Operating -65°C to 200°C (TJ)
Mounting Through Hole
Case / Package TO-3
Win Source Part Number 197473-2N6545
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N6545 CAD Model

Description

Features and Benefits

  • Excellent High-Speed Switching
  • High voltage and current ratings
  • Compact packaging

Applications

  • Inverters
  • Power amplifiers
  • DC-DC converters
  • Industrial control systems

Additional Details

The 2N6545 stands out for its high-speed switching capabilities and robust performance in high-voltage environments. Its compact design facilitates integration into a diversity of circuit arrangements, making it highly versatile for modern electronic innovations.
