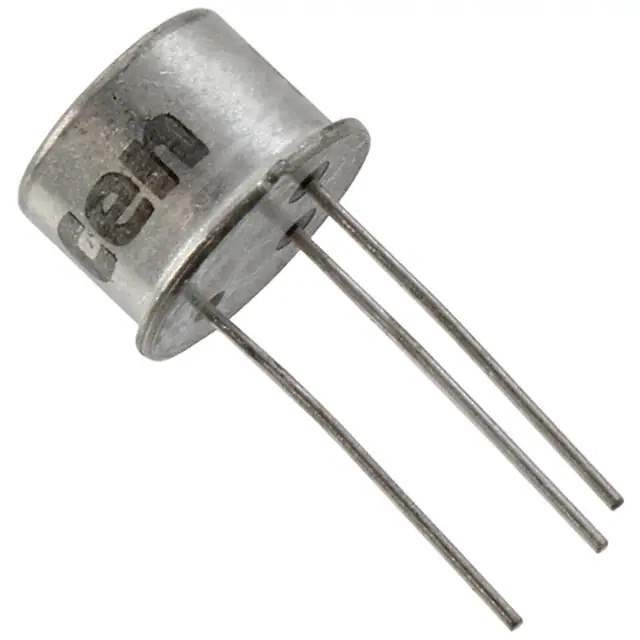

CM5583 Real Image
Same model may have multiple batches, images only for reference.

CM5583

Part No CM5583
Manufacturer Central Semiconductor Corp
Catalog RF Transistors (BJT)
Description RF TRANSISTOR TO-39 / RF Transistor PNP 30V 500mA 1.3GHz 1W Through Hole TO-39
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar RF Transistors
Mfr Central Semiconductor Corp
Package Bulk
Product Status Obsolete
Transistor Type PNP
Voltage - Collector Emitter Breakdown (Max) 30V
Frequency - Transition 1.3GHz
Power - Max 1W
DC Current Gain (hFE) (Min) @ Ic, Vce 25 @ 100mA, 2V
Current - Collector (Ic) (Max) 500mA
Temperature Range - Operating -65°C ~ 200°C (TJ)
Mounting Type Through Hole
Package / Case TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39
Standard Package 500 pcs
ECCN OBSOLETE
Win Source Part Number 579472-CM5583
Ultra Librarian 3D Model Ultra Librarian CM5583 CAD Model

Description

The CM5583 is a PNP bipolar RF transistor from Central Semiconductor Corp.

  • Frequency: 1.3GHz
  • Power Dissipation: 1W
  • Collector-Emitter Breakdown Voltage: 30V
  • Maximum Collector Current: 500mA
  • DC current gain: 25 @ 100mA and 2V
  • Mounting: through-hole
  • Package: TO-205AD, TO-39-3 Metal Can
  • Operating Temperature: -65°C to 200°C
  • Status: obsolete
  • Suitable for: RF amplification circuits, communication systems, and electronic equipment
