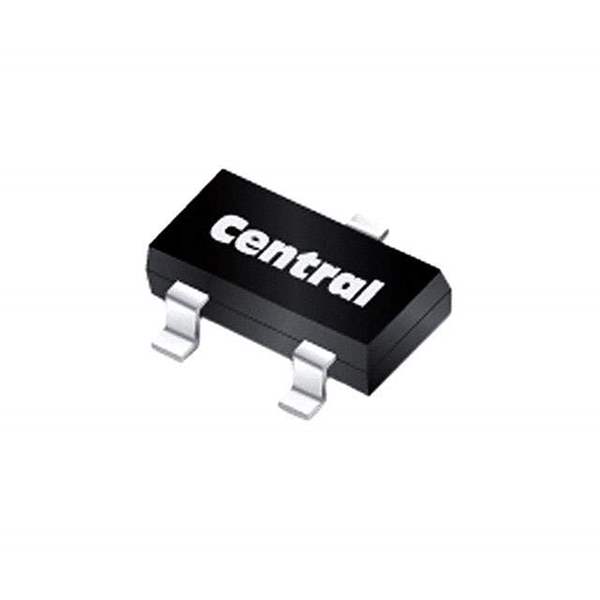

CMPSH05-4C TR Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

CMPSH05-4C TR

Part No CMPSH05-4C TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 40V 500MA SOT23
Datasheet
CMPSH05-4C TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) (per Diode) 500mA
Voltage - Forward (Vf) (Max) @ If 470mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 30V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 1029683-CMPSH05-4C TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMPSH05-4C TR CAD Model

Description

The Central Semiconductor Corp. CMPSH05-4C TR is a Schottky diode.

  • Maximum DC Reverse Voltage: 40V
  • Forward Voltage: 470mV @ 500mA
  • Package: SOT-23 package
  • Mounting Type: SMD (SMT)
  • Recovery Speed: Fast recovery speed of 200mA (Io)
  • Diode Configuration: 1 pair common cathode.
  • Current Reverse Leakage: 100μA @ 30V
  • Commonly used in: Commonly used in various discrete semiconductor products.
