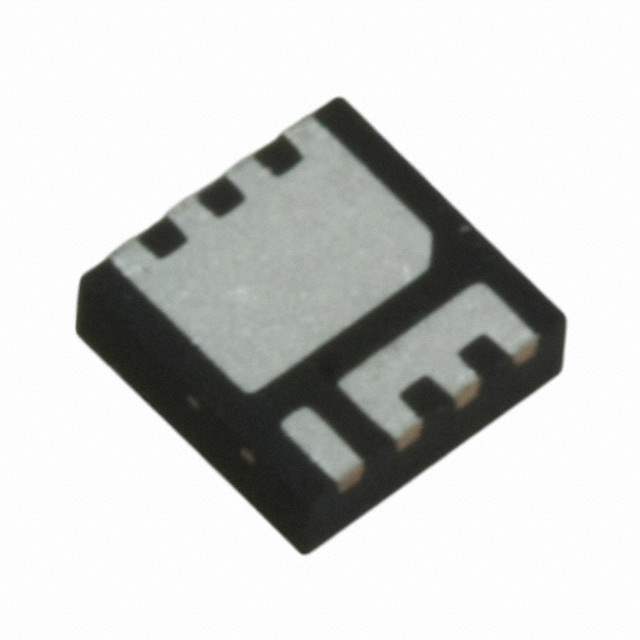

IRFH7932TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH7932TRPBF

Part No IRFH7932TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 24A PQFN56
Datasheet
IRFH7932TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 24A (Ta), 104A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 100μA
Max Gate Charge 51nC @ 4.5V
Max Input Capacitance 4270pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.4W (Ta)
Maximum Rds On at Id,Vgs 3.3 mOhm @ 25A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6) Single Die
Dimension 8-PowerVDFN
Win Source Part Number 017600-IRFH7932TRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFH7932TRPBF CAD Model

Description

The Infineon Technologies 017600-IRFH7932TRPBF is an N-Channel MOSFET designed for use in various applications.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 24A (Ta) and 104A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 2.35V @ 100μA
  • Maximum Gate Charge: 51nC @ 4.5V
  • Maximum Input Capacitance: 4270pF @ 15V
  • Maximum Rds On @ Id,Vgs: 3.3 mOhm @ 25A, 10V
  • Package: PQFN (5x6) single die
  • Popularity: Common-used part with high popularity in the market.
