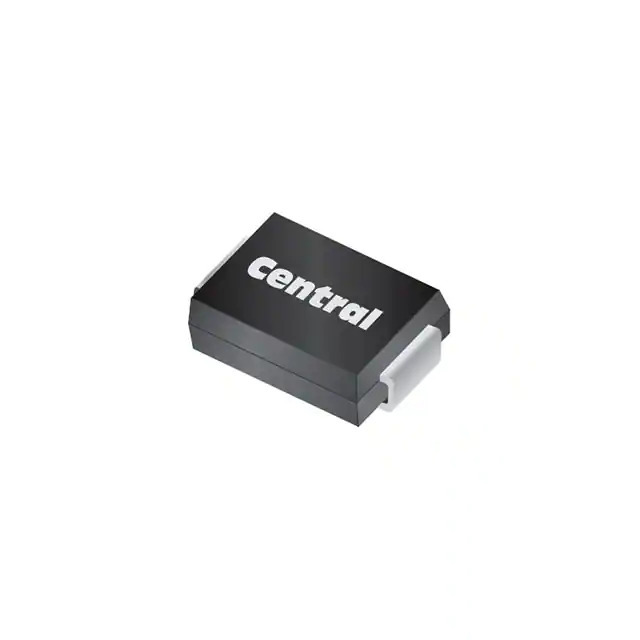

CMZ5934B TR13 PBFREE Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

CMZ5934B TR13 PBFREE

Part No CMZ5934B TR13 PBFREE
Manufacturer Central Semiconductor Corp
Catalog Diodes - Zener - Single
Description DIODE ZENER 24V 1.5W SMA
Datasheet
CMZ5934B TR13 PBFREE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Central Semiconductor Corp
Series -
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 24 V
Tolerance ±5%
Power - Max 1.5 W
Impedance (Max) (Zzt) 19 Ohms
Current - Reverse Leakage @ Vr 1 µA @ 18.2 V
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 200 mA
Temperature Range - Operating -65°C ~ 150°C
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Base Product Number CMZ5934
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1367558-CMZ5934B TR13 PBFREE
Ultra Librarian 3D Model Ultra Librarian CMZ5934B TR13 PBFREE CAD Model

Description

The CMZ5934B TR13 PBFREE is a single Zener diode from Central Semiconductor Corp. It has a voltage rating of 24V and a power rating of 1.5W.

  • Voltage Rating: 24V
  • Power Rating: 1.5W
  • Forward Voltage: 1.5V @ 200mA
  • Reverse Leakage Current: 1µA @ 18.2V
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Temperature Range: -65°C to 150°C
