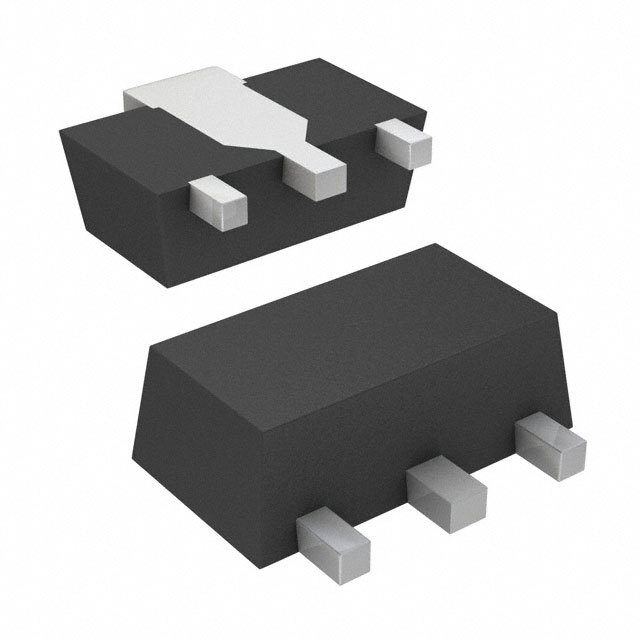

Same model may have multiple batches, images only for reference.
CXTA42 TR PBFREE Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

CXTA42 TR PBFREE

Part No CXTA42 TR PBFREE
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description TRANS NPN 300V 0.5A SOT89 / Bipolar (BJT) Transistor NPN 300 V 500 mA 50MHz 1.2 W Surface Mount SOT-89
Datasheet
CXTA42 TR PBFREE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Central Semiconductor Corp
Series -
Package Tape & Reel
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 500 mA
Voltage - Collector Emitter Breakdown (Max) 300 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 2mA, 20mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 30mA, 10V
Power - Max 1.2 W
Frequency - Transition 50MHz
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number CXTA42
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 1355582-CXTA42 TR PBFREE
Ultra Librarian 3D Model Ultra Librarian CXTA42 TR PBFREE CAD Model

Description

The CXTA42 TR PBFREE is a single bipolar transistor manufactured by Central Semiconductor Corp.

  • Mounting Type: Surface Mount
  • Collector Current (Max): 500mA
  • Collector-Emitter Breakdown Voltage: 300V
  • DC Current Gain: 40 @ 30mA, 10V
  • Vce Saturation: 500mV @ 2mA, 20mA
  • Operating Temperature: -65°C to 150°C
  • Transition Frequency: 50MHz
