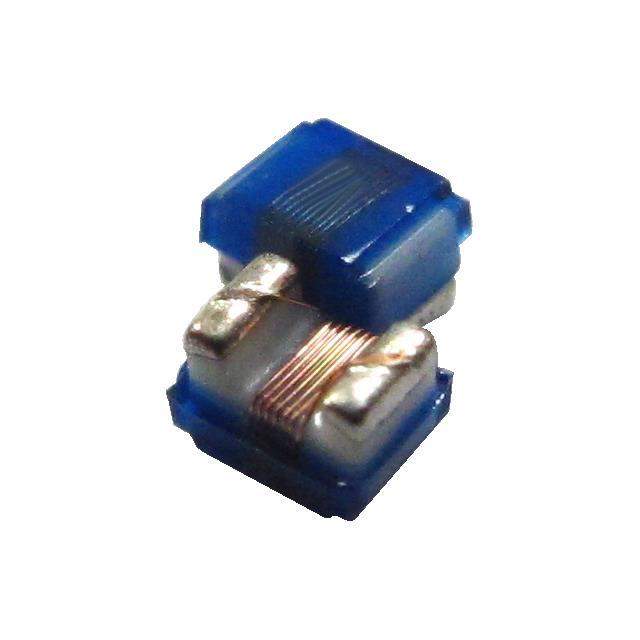

BWCM001207074N7H00 Real Image
Same model may have multiple batches, images only for reference.

BWCM001207074N7H00

Part No BWCM001207074N7H00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR RF / 4.7 nH Unshielded Drum Core, Wirewound Inductor 750 mA 70mOhm Max 0402 (1005 Metric)
Datasheet
BWCM001207074N7H00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Chilisin Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 4.7 nH
Tolerance ±3%
Current Rating (Amps) 750 mA
Shielding Unshielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 25 @ 250MHz
Frequency - Self Resonant 8GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting Surface Mount
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.047" L x 0.028" W (1.19mm x 0.70mm)
Height - Seated (Max) 0.026" (0.66mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 553-BWCM001207074N7H00TR,553-BWCM001207074N7H00CT,553-BWCM001207074N7H00DKR
Standard Package 4,000
Win Source Part Number 1329261-BWCM001207074N7H00
Ultra Librarian 3D Model Ultra Librarian BWCM001207074N7H00 CAD Model

Description

Chilisin Electronics' 1329261-BWCM001207074N7H00 is a fixed inductor that comes in a reel package.

  • Core: Drum Core, Wire-Wound
  • Shielding: Unshielded
  • Inductance: 4.7 nH
  • Tolerance: ±3%
  • DC Resistance: 70mOhm Max
  • Current Rating: 750 mA
  • Mounting Type: Surface Mount
  • Material: Ceramic
