Same model may have multiple batches, images only for reference.

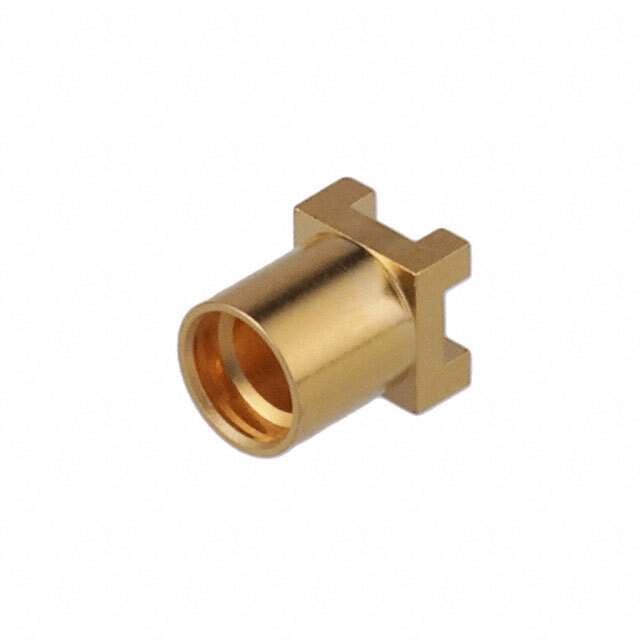

135-3711-201 Real Image
Same model may have multiple batches, images only for reference.

135-3711-201

Part No 135-3711-201
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCX JACK STR 50 OHM SMD / MMCX Connector Jack, Female Socket 50Ohm Surface Mount Solder
Datasheet
135-3711-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Cinch Connectivity Solutions Johnson
Package Bulk
Connector Style MMCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 170 V
Mating Cycles 500
Base Product Number 135-3711
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1337706-135-3711-201
Ultra Librarian 3D Model Ultra Librarian 135-3711-201 CAD Model

Description

This MMCX connector from Cinch Connectivity Solutions Johnson is a high-quality range of Coaxial Connector (RF) Assemblies.

  • Connector Type: Jack Female Socket
  • Fastening Type: Snap-On
  • Termination: Solder
  • Voltage Rating: 170V
  • Housing Color: Gold
  • Maximum Frequency: 6GHz
  • Impedance: 50Ohm
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Temperature Range: -55°C to 155°C
  • Mounting Type: Surface Mountable
