Same model may have multiple batches, images only for reference.

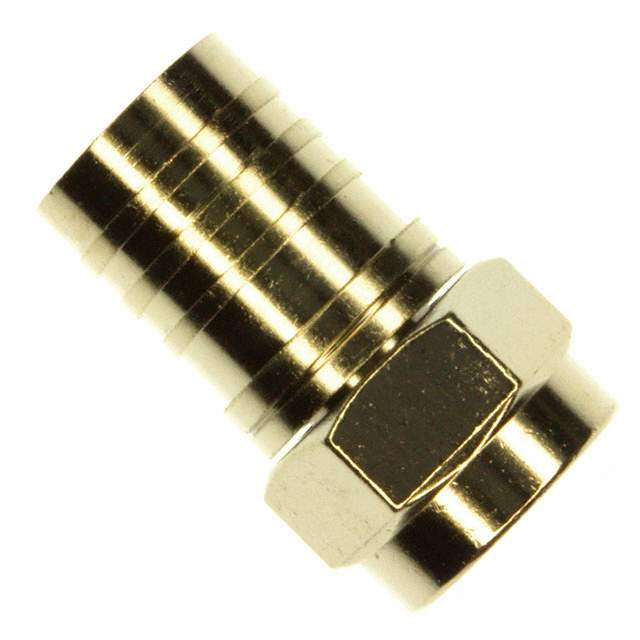

25-7032 Real Image
Same model may have multiple batches, images only for reference.

25-7032

Part No 25-7032
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN F PLUG STR 75 OHM / F Type Connector Plug, Male Pin 75Ohm Free Hanging (In-Line)
Datasheet
25-7032 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Cinch Connectivity Solutions AIM-Cambridge
Packaging Bulk
Connector Style F Type
Connector Type Plug, Male Pin
Shield Termination Crimp
Impedance 75Ohm
Mounting Free Hanging (In-Line)
Cable Group RG-6
Fastening Type Threaded
Frequency - Max 750 MHz
Number of Ports 1
Housing Color Silver
Body Material Brass
Body Finish Nickel
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 100
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 367-1022,CPF56ALM,367-1022-ND,012446003880,367-0022-ND,257032,367-0022,116-25-7032,CPF-56-ALM
Standard Package 100
Win Source Part Number 1331940-25-7032
Ultra Librarian 3D Model Ultra Librarian 25-7032 CAD Model

Description

The Cinch Connectivity Solutions AIM-Cambridge is a coaxial connector assembly with a plug male pin connector type and threaded fastening.

  • Connector Type: Plug Male Pin
  • Fastening: Threaded
  • Connector Style: F type
  • Voltage Rating: 500 V
  • Housing Color: Silver
  • Ports: 1
  • Mounting: Free hanging (in-line)
  • Impedance: 75 Ohm
  • Body Material: Brass
  • Body Finish: Nickel
  • Shield Termination: Crimp
  • Cable Group: RG-6
  • Frequency Range: Up to 750 MHz
  • Temperature Range: -55°C to 85°C
  • Standard Package: 100
