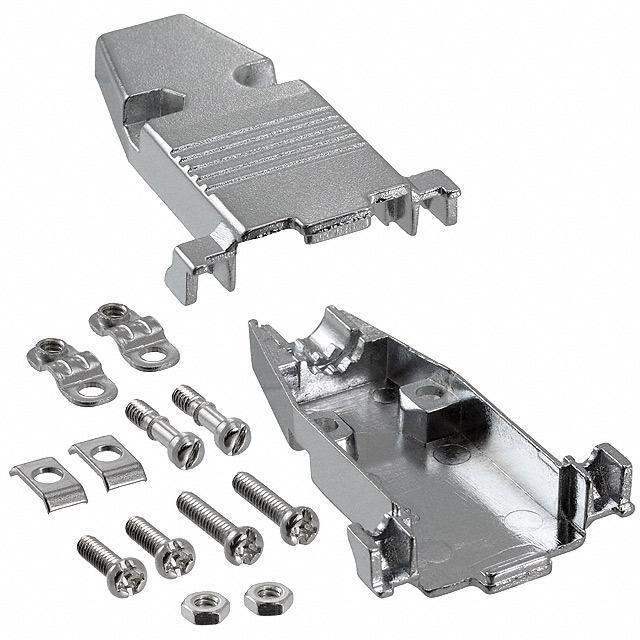

40-9709HM Cinch Connectivity Solutions AIM-Cambridge
Same model may have multiple batches, images only for reference.

40-9709HM

Part No 40-9709HM
Manufacturer Cinch Connectivity Solutions
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 9POS 180DEG SHLD
Datasheet
40-9709HM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201265-40-9709HM
Manufacturer Cinch Connectivity Solutions AIM-Cambridge
Category Connectors, Interconnects- D-Sub, D-Shaped Connectors -D-Sub, D-Shaped Connector -Backshells, Hoods
Series HM
Package Bulk
Product Status Active
Accessory Type Two Piece Backshell
Number of Positions 9
Cable Type Round
Shielding Shielded
Ultra Librarian 3D Model Ultra Librarian 40-9709HM CAD Model

Description

The HM series two-piece backshell by Cinch Connectivity Solutions AIM-Cambridge is a shielded D-sub connector accessory.

  • Series: HM
  • Connector Type: D-Sub
  • Number of Positions: 9
  • Cable Exit Angle: 180°
  • Product Status: Active
  • Cable Type: Round
  • Shielded: Yes
  • Packaging: Bulk
