BJ75 Cinch Connectivity Solutions
Same model may have multiple batches, images only for reference.

BJ75

Part No BJ75
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies

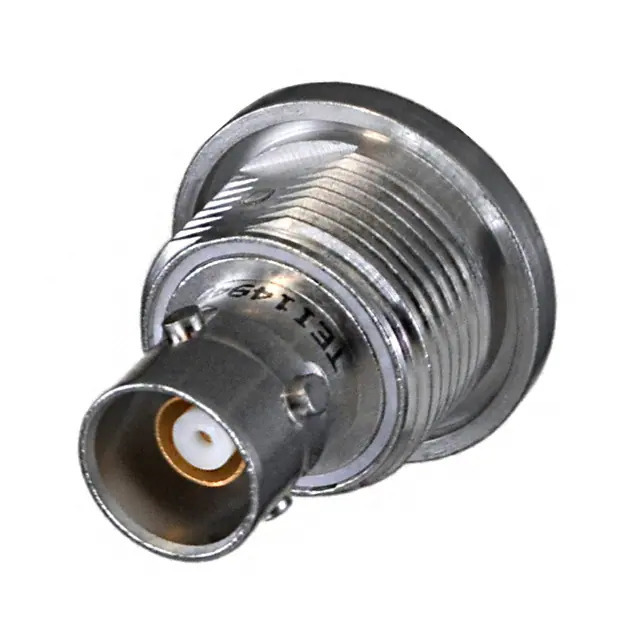

Description CONN TRB JACK STR SOLDER / TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder Cup
Datasheet
BJ75 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Cinch Connectivity Solutions Trompeter
Series 70
Package Bulk
Product Status Active
Connector Style TRB, Twinaxial/Triaxial
Connector Type Jack, Female Socket (Concentric)
Contact Termination Solder Cup
Shield Termination Solder
Impedance Non-Constant
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Cable Group -
Fastening Type Bayonet Lock
Frequency - Max 500 MHz
Number of Ports 1
Features Three Lug
Housing Color Silver
Ingress Protection -
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material -
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 400 V
Mating Cycles 500
Insertion Loss -
Base Product Number -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1354720-BJ75
Ultra Librarian 3D Model Ultra Librarian BJ75 CAD Model

Description

The BJ75 is a Coaxial Connector Assembly manufactured by Cinch Connectivity Solutions Trompeter.

  • Mounting Type: Panel Mount
  • Connector Type: Jack, Female Socket (Concentric)
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 400V
  • Mounting Feature: Bulkhead-Front Side Nut
  • Housing Color: Silver
  • Series: 70
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Frequency Range: Up to 500 MHz
  • Application: Coaxial Connectors (RF)
