The CS4207-DNZ is a highly integrated audio codec from Cirrus Logic, designed for portable audio applications and other systems requiring high-quality audio processing. This device offers a comprehensive solution for audio input and output, including analog-to-digital converters (ADCs) and digital-to-analog converters (DACs), along with various audio processing features.

Applications

• Portable media players
• Mobile phones
• USB audio interfaces
• Gaming consoles
• Automotive audio systems

Features

• High-performance stereo ADCs and DACs
• Low power consumption
• Integrated headphone amplifier
• Microphone preamplifier with adjustable gain
• Digital audio interface (I2S/PCM)
• On-chip PLL for clock generation
• I2C control interface
• Small package size

Benefits

• Provides high-fidelity audio recording and playback, ensuring a superior audio experience.
• Extends battery life in portable devices due to its low power consumption.
• Eliminates the need for external headphone amplifiers with the integrated amplifier.
• Enables high-quality microphone recording with the adjustable gain preamplifier.
• Simplifies system integration with the digital audio interface and I2C control interface.
• Reduces board space requirements with its small package size.
• Offers flexibility in system design with the on-chip PLL.

Additional Details

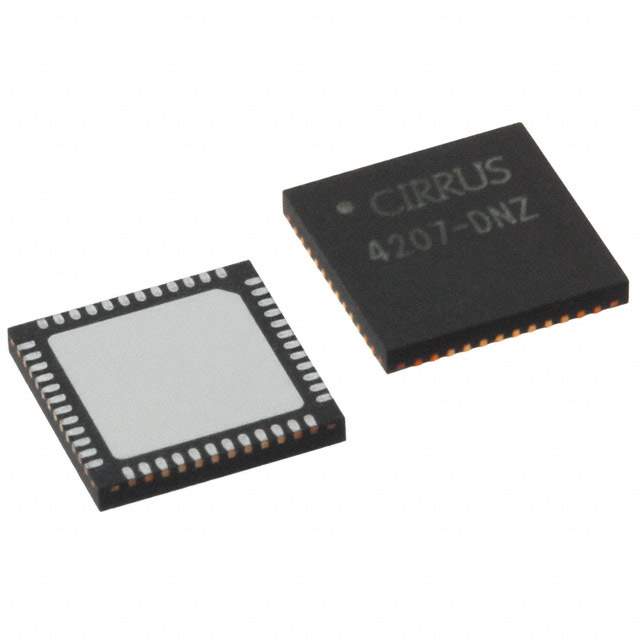

The CS4207-DNZ utilizes a Delta-Sigma modulator architecture to achieve high dynamic range and low distortion. The integrated headphone amplifier provides ample power for driving headphones with various impedances. The microphone preamplifier features adjustable gain to accommodate different microphone sensitivities. The digital audio interface supports various audio formats, including I2S and PCM. The on-chip PLL allows for generating the required clock signals from a single crystal oscillator. The I2C interface allows for easy configuration of the codec parameters, such as volume, mute, and gain settings. The CS4207-DNZ is available in a small QFN package, making it suitable for space-constrained applications.
