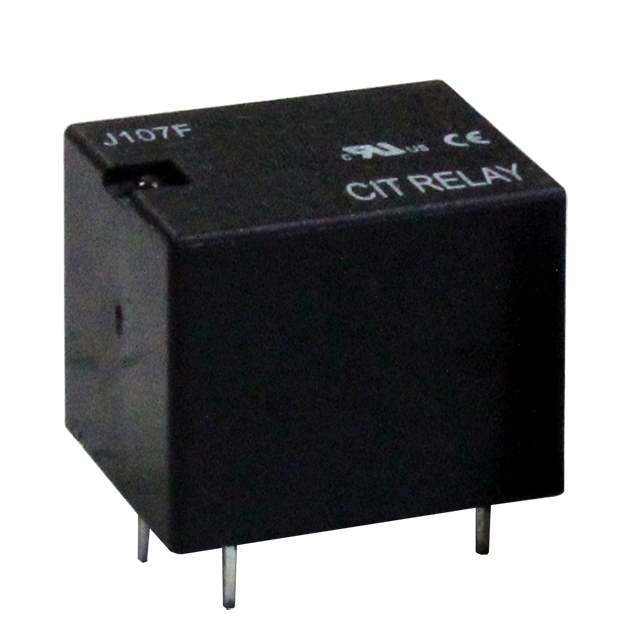

J107F1CS123VDC.36 Real Image
Same model may have multiple batches, images only for reference.

J107F1CS123VDC.36

Part No J107F1CS123VDC.36
Manufacturer CIT Relay & Switch
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 3V / General Purpose Relay SPDT (1 Form C) 3VDC Coil Through Hole
Datasheet
J107F1CS123VDC.36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr CIT Relay and Switch
Series J107F
Package Tube
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 380VAC, 110VDC - Max
Coil Current 120 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -55°C ~ 125°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 25 Ohms
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
California Prop 65 Warning Information
Win Source Part Number 1350580-J107F1CS123VDC.36
Ultra Librarian 3D Model Ultra Librarian J107F1CS123VDC.36 CAD Model

Description

The J107F1CS123VDC.36 is a power relay manufactured by CIT Relay and Switch.

  • Manufacturer: CIT Relay and Switch
  • Product Name: J107F1CS123VDC.36
  • Type: General Purpose
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Switching Voltage: 380VAC and 110VDC
  • Contact Rating: 12 A
  • Coil Voltage: 3VDC
  • Coil Resistance: 25 Ohms
  • Coil Current: 120 mA
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Sealed: Yes
  • Mounting Type: Through-Hole
  • Temperature Range: -55°C to 125°C
  • Coil Insulation: Class F
  • Must Operate Voltage: 2.25 VDC
  • Must Release Voltage: 0.3 VDC
  • REACH Unaffected: Yes
  • ECCN: EAR99
  • Standard Package: 25 Pieces
