Same model may have multiple batches, images only for reference.

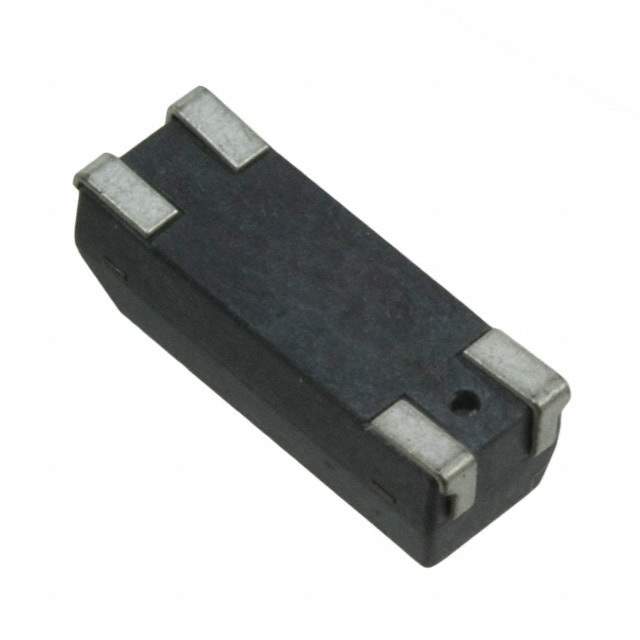

CM309A64.000MABJT Real Image
Same model may have multiple batches, images only for reference.

CM309A64.000MABJT

Part No CM309A64.000MABJT
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 64.0000MHZ 18PF SMD
Datasheet
CM309A64.000MABJT Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Citizen Finedevice Co Ltd
Series CM309A
Part Status Obsolete(EOL)
Type MHz Crystal
Frequency 64MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohm
Operating Mode 3rd Overtone
Operating Temperature Range -10°C ~ 60°C
Mounting SMD
Package 2-SOJ, 2.85mm pitch
Dimension 0.528" L x 0.200" W (13.40mm x 5.08mm)
Height - Seated (Maximum) 0.181" (4.60mm)
Win Source Part Number 766809-CM309A64.000MABJT
Popularity Medium
Supply and Demand Status Limited
Family Name CM309A
Introduction Date September 01, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CM309A64.000MABJT CAD Model

Description

The Citizen Finedevice CM309A64.000MABJT MHz crystal is designed for use in crystals, oscillators, and resonators.

  • Operating Temperature: -10°C to 60°C
  • Frequency: 64MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: 3rd overtone
  • Package: SMD
  • Pitch: 2-SOJ, 2.85mm
  • Status: Obsolete
  • Package Quantity: 1 piece
