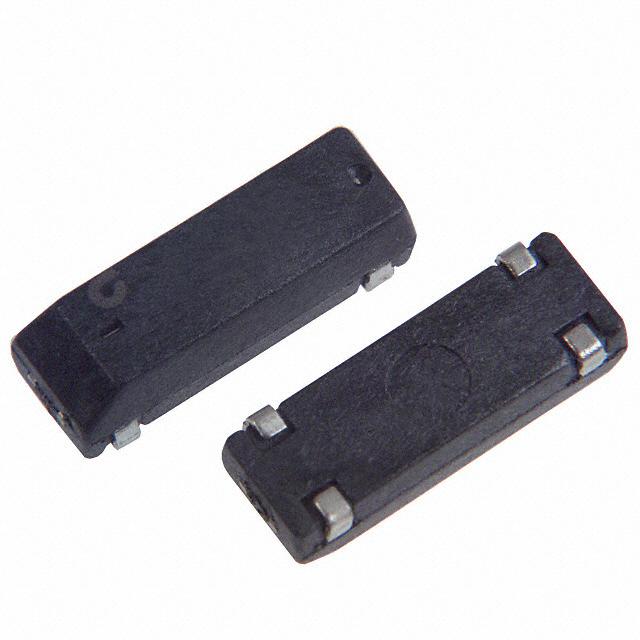

Same model may have multiple batches, images only for reference.
CM309S14.7456MABJT Citizen Finedevice Co Ltd
Same model may have multiple batches, images only for reference.

CM309S14.7456MABJT

Part No CM309S14.7456MABJT
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 14.7456MHZ 18PF SMD
Datasheet
CM309S14.7456MABJT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Citizen Finedevice Co Ltd
Series CM309S
Packaging Reel package
Part Status Obsolete(EOL)
Type MHz Crystal
Frequency 14.7456MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 60°C
Mounting SMD
Package 4-SOJ, 9.40mm pitch
Dimension 0.488" L x 0.173" W (12.40mm x 4.40mm)
Height - Seated (Maximum) 0.146" (3.70mm)
Win Source Part Number 771617-CM309S14.7456MABJT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CM309S14.7456MABJT CAD Model

Description

The CM309S14.7456MABJT is a MHz crystal manufactured by Citizen Finedevice Co Ltd.

  • Win Source Part Number: 771617
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Series: CM309S
  • Operating Temperature: -10°C to 60°C
  • Package: 4-SOJ, 9.40mm pitch
  • Mounting: SMD
  • Frequency: 14.7456MHz
  • ESR: 50 Ohm
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Dimension: 0.488" L x 0.173" W (12.40mm x 4.40mm)
  • Seated Height: 0.146" (3.70mm)
